2KZ/2K0
1-3-27
U053 Adjustment
1. Press the system menu key.
2. Press the start key to output an A3/Ledger VTC pattern.

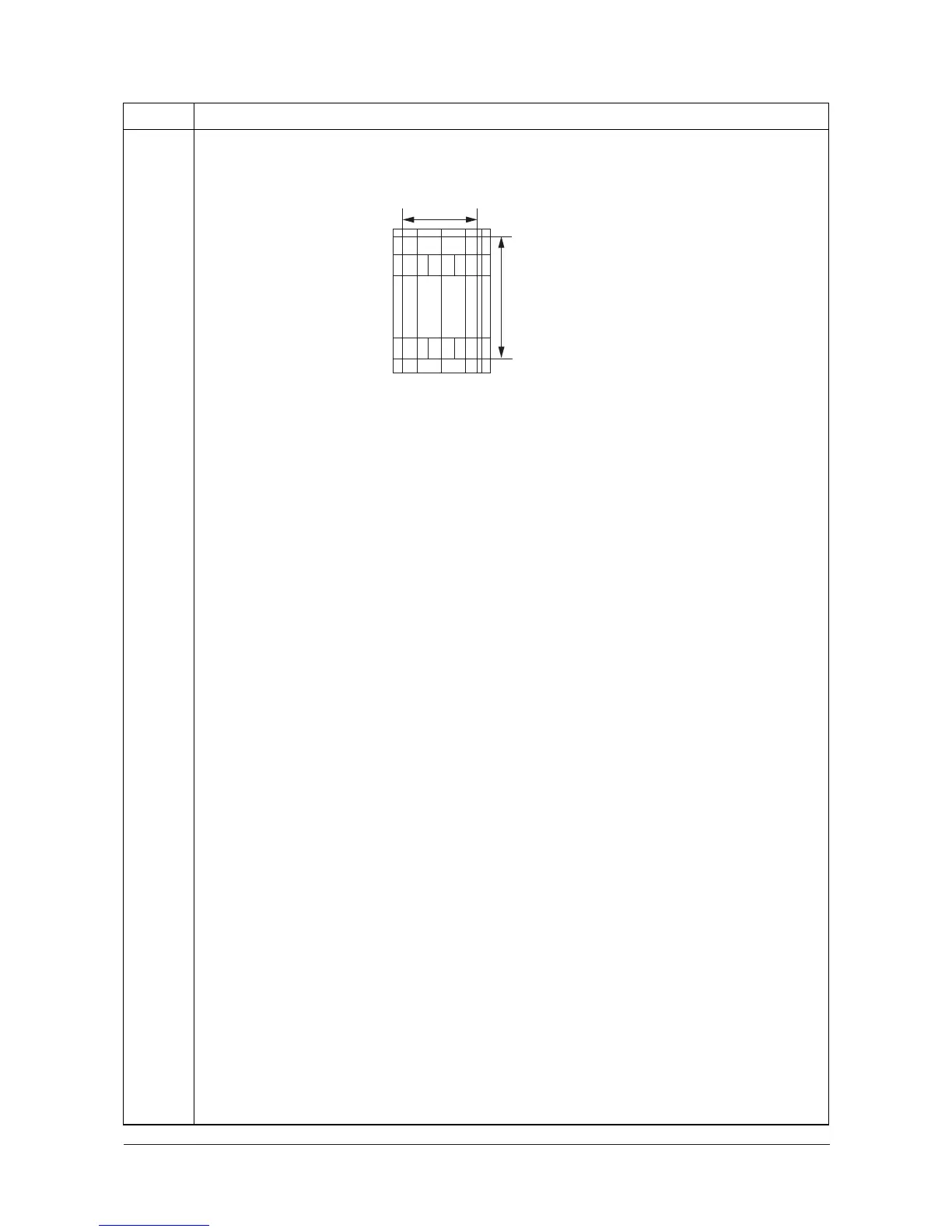

Figure 1-3-5
3. Press the system menu key.
4. A: Magnification in the auxiliary scanning direction
1) Select [Main].
2) Change the setting value using the cursor left/right keys or numeric keys.
Increasing the setting makes the image longer in the auxiliary scanning direction, and
decreasing it makes the image shorter in the auxiliary scanning direction.
B: Magnification in the main scanning direction
1) Select [Polygon].
2) Change the setting value using the cursor left/right keys or numeric keys.
Increasing the setting makes the image shorter in the main scanning direction, and
decreasing it makes the image longer in the main scanning direction.
5. Press the start key. The value is set.
Completion
Press the stop key. The indication for selecting a maintenance item No. appears.
Item No. Description
B
A
Correct values for an A3/Ledger
output are:
A = 350
± 1.4 mm
B = 250
± 1.0 mm
Y113010-4 Sevice Manual
