Connector Terminals with Transistors Section 5-6
Mounting The DRT2-@D32B/BV is mounted to the control panel using screws. It cannot
be mounted to DIN Track. Use M4 mounting screws and mount the board
using spacers.

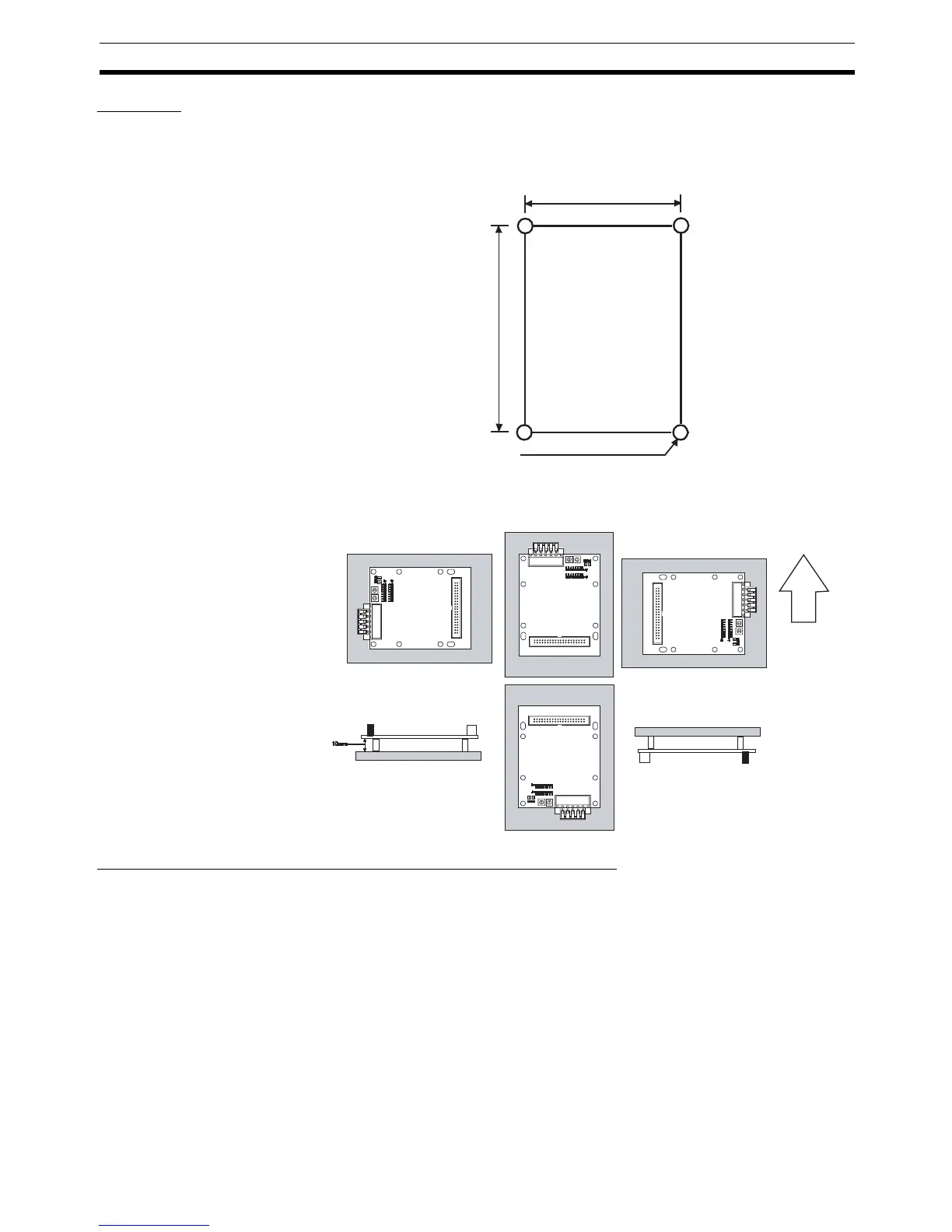

Mounting Dimensions
Mounting Direction There are no restrictions to the mounting direction. The board can be
mounted in any of the following six directions. The DRT2-@D32BV(-1) is
shown in the following diagram.
Wiring Internal Power Supplies, I/O Power Supplies and I/O
Internal power is supplied together with the communications power supply
and does not need to be wired separately. I/O power supplies and I/O are
wired through the I/O MIL connector.
71.5±0.5
76±0.5
Four, 4.5 dia. or M4 holes
Perpendicular
To Next Page
