200
Connector Terminals with Transistors Section 5-6

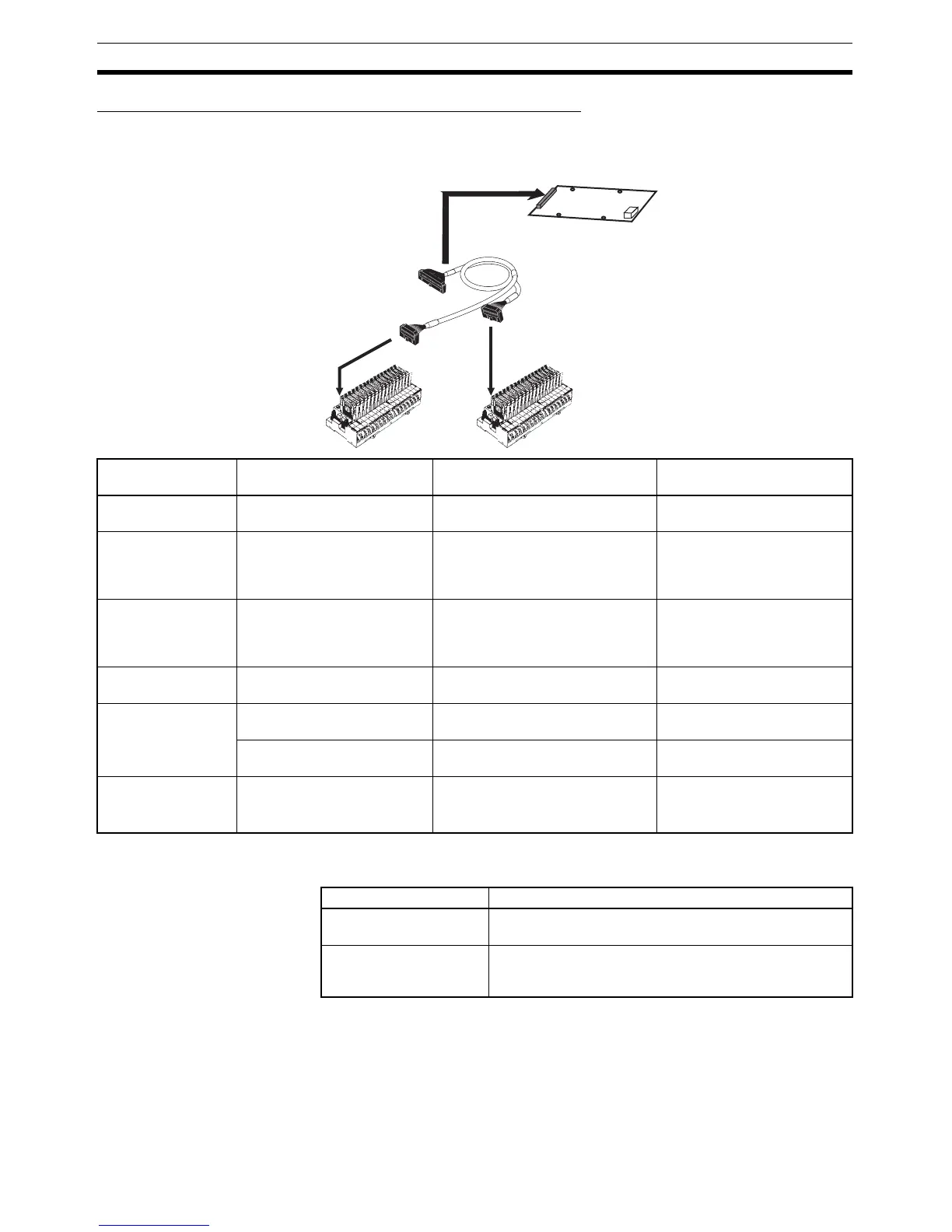

Connecting to I/O Terminals Using OMRON MIL Cables
The MIL Cables listed in the following table are available to connect OMRON
I/O Terminals (e.g., I/O Relay Blocks). Select the MIL Cable that matches the
Remote I/O Terminal and the I/O Terminal.
The following cables are also available with a MIL connector on the Remote
I/O Terminal end and loose wires on the other end.
Slave MIL Cable I/O Relay Block or other I/O
Terminal
Remarks
DRT2-ID32B G79-I50-25-D1 (50 cm)
G79-I75-50-D1 (75 cm)
G7TC-ID16
G7TC-IA16
---
DRT2-OD32B G79-O50-25-D1 (50 cm)
G79-O75-50-D1 (75 cm)
G7TC-OC08/OC16
G70D-SOC16/VSOC16
G70A-ZOC16-3
G70D-FOM16/VFOM16
---
DRT2-MD32B G79-M50-25-D1 (50 cm)
G79-M75-50-D1 (75 cm)
Inputs: G7TC-ID16/IA16
Outputs: G7TC-OC08/OC16
G70D-SOC16/VSOC16
G70A-ZOC16-3
I/O are distinguished by color.
Input tube color: Red
Output tube color: Yellow
DRT2-ID32B-1 G79-I50-25-D2 (50 cm)
G79-I75-50-D2 (75 cm)
G70A-ZIM16-5 ---
DRT2-OD32B-1 G79-O50-25-D1 (50 cm)
G79-O75-50-D1 (75 cm)
G70A-ZOC16-4
G70D-SOC16-1
---
G79-I50-25-D1 (50 cm)
G79-I75-50-D1 (75 cm)
G7TC-OC16-4
M7F
---
DRT2-MD32B-1 G79-M50-25-D2 (50 cm)
G79-M75-50-D2 (75 cm)
Inputs: G70A-ZIM16-5
Outputs: G70A-ZOC16-4
G70D-SOC16-1
I/O are distinguished by color.
Input tube color: Red
Output tube color: Yellow
MIL Cable Remarks
G79-A200C-D1 (2 m)
G79-A500C-D1 (5 m)
Loose wire size: AWG28
Loose wires are cut.
G79-Y100C-D1 (1 m)
G79-Y200C-D1 (2 m)
G79-Y500C-D1 (5 m)
Forked terminals are attached to the loose wires.
Forked terminals: 161071-M2 (Nippon Terminal)
