361

Analog Output Terminals Section 7-5

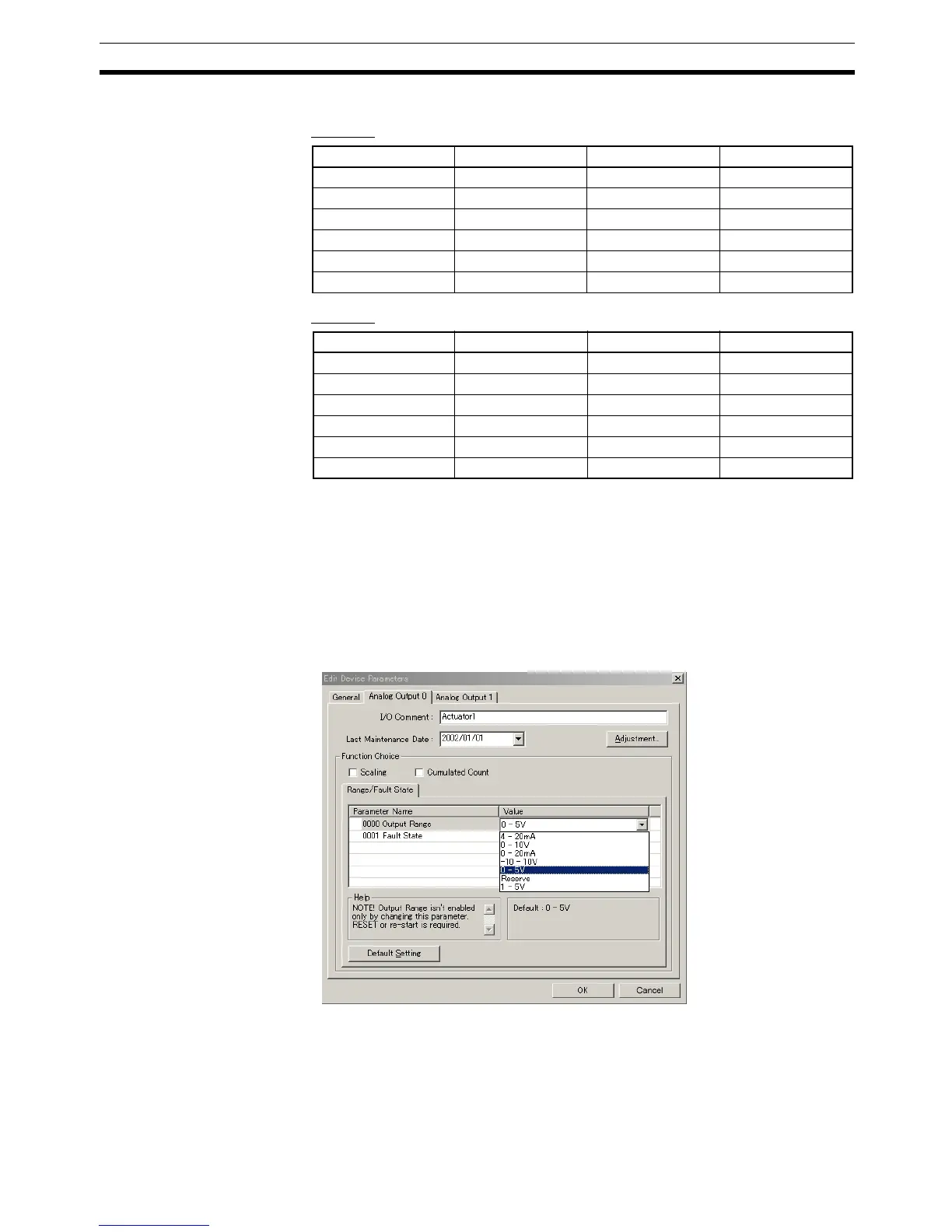

Output Range Settings

■ Output 0

■ Output 1

Setting Using the

DeviceNet Configurator

Use the following procedure to set the output range for each output using the

Configurator.

1,2,3... 1. Double-click the icon of the Slave to be set in the Main Window and open

the Edit Device Parameters Window. (From the Maintenance Mode Win-

dow, click the right mouse button over the Slave icon and select Parame-

ters and Edit.)

2. Select the Tab Page for the output where the range is to be changed.

3. Click the Output Range field, and select the desired range.

4. Return to the General Tab, click the Download Button, and then click the

Reset Button to reset the Unit.

5. Click the OK Button and exit the window.

Signal range Pin 1 Pin 2 Pin 3

0 to 5 V OFF OFF OFF

1 to 5 V ON OFF OFF

0 to 10 V OFF ON OFF

–10 to 10 V ON ON OFF

4 to 20 mA OFF OFF ON

0 to 20 mA ON OFF ON

Signal range Pin 4 Pin 5 Pin 6
