173 HD-1500 Platform User's Manual 31500-000 Rev A
6.3 Electronics Bay Connections
IMPORTANT: Do not connect user-supplied equipment to the Ethernet switches.
A

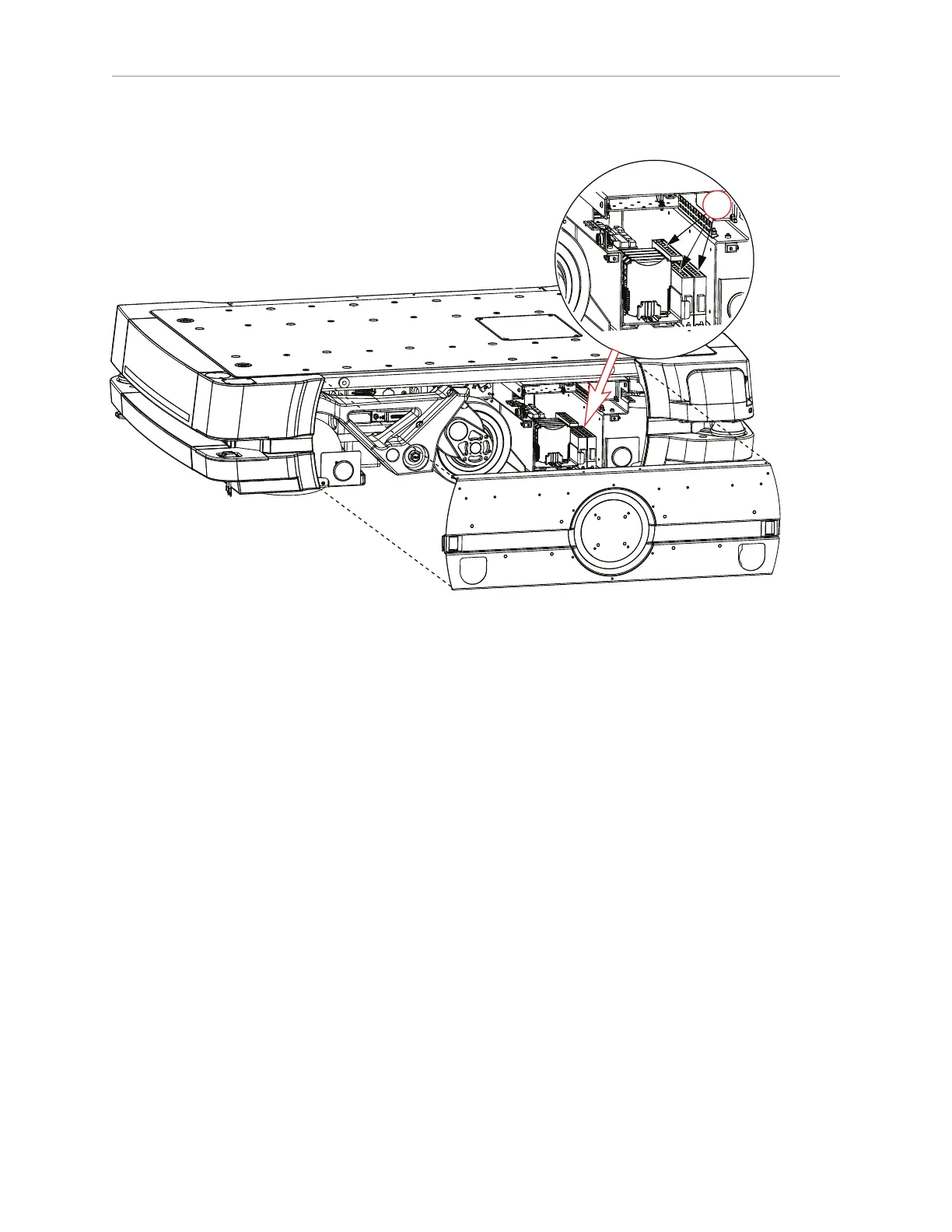

Figure 6-17. (A) Ethernet Switches Located in the Electronics Bay
The following sections describe the mapping of the Ethernet switches.
