Chapter 6: Connectivity

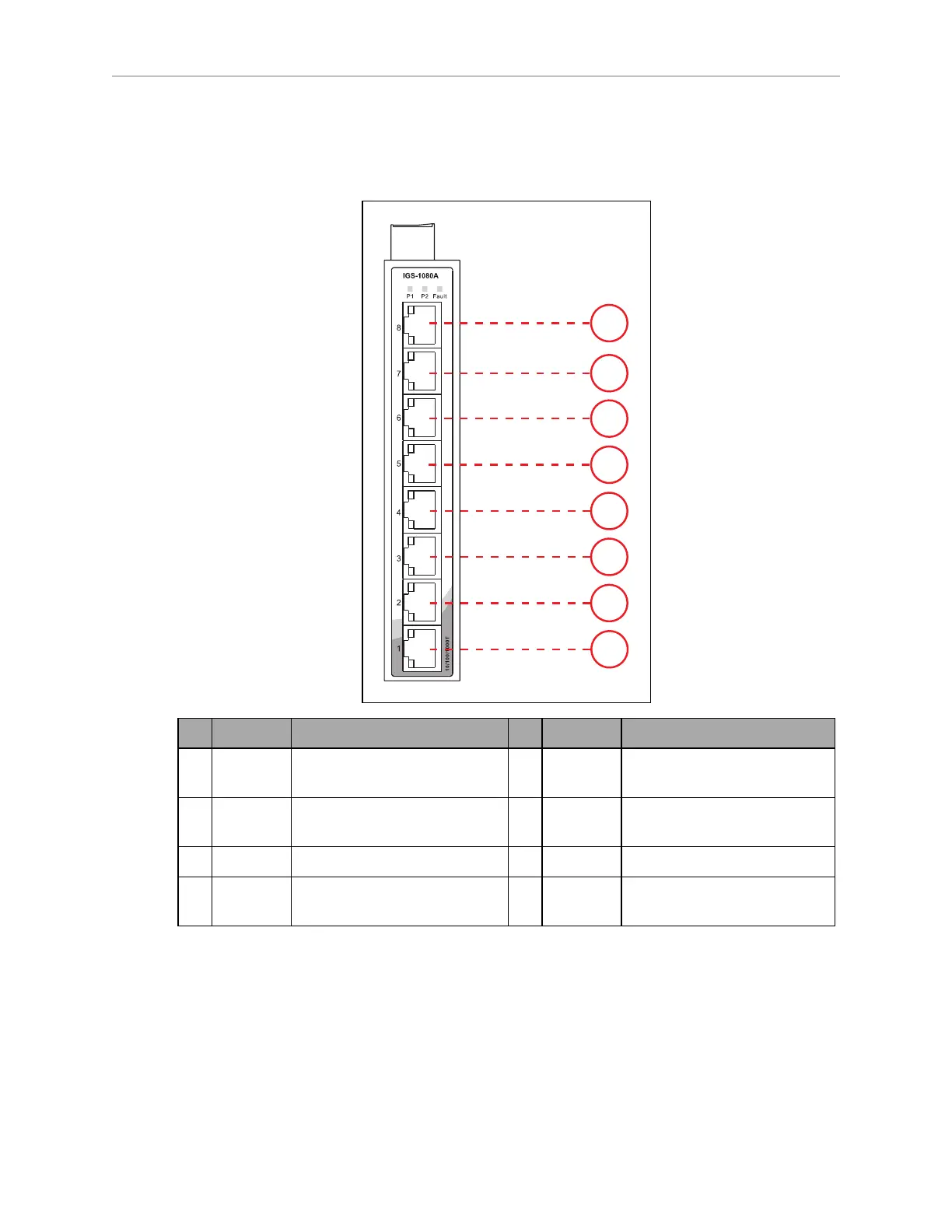

Navigation Ethernet Switch
The Navigation Ethernet switch collects critical data. The most critical information com-
municated to the Navigation Ethernet switch is the safety scanning laser data.
H
G
F
E
D
C
B
A
ID Port No. Connection ID Port No. Connection
A 1 IPC Port No. 2
RJ45 2ft, Cat5e, Flat
E 5 Maintenance Front Panel
RJ45, 2m, Cat5e, Flat
B 2 Safety scanning laser - Front
M12 Right Angle, 2m, Cat5e
F 6 Reserved for future use.
C 3 Reserved for future use. G 7 Reserved for future use.
D 4 Reserved for future use. H 8 Safety scanning laser - Rear
M12 Right Angle, 2m, Cat5e
