Chapter 6: Connectivity

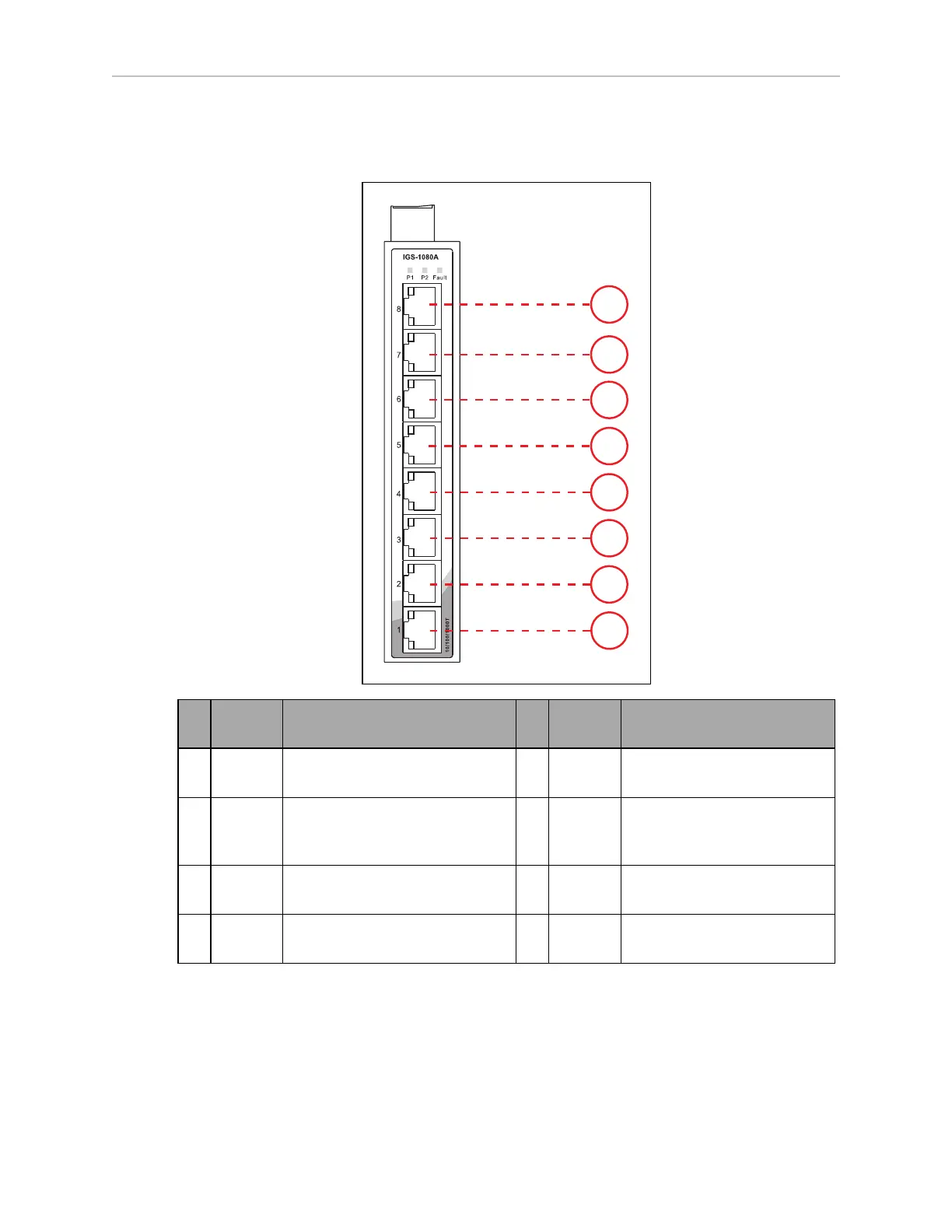

MQTT Ethernet Switch
The MQTT Ethernet switch is responsible for non-critical tasks.
H
G
F
E
D
C
B
A
ID Port
No.
Connection ID Port
No.
Connection
A 1 IPC Port No. 4 (base module)
RJ45 2ft, Cat5e, Flat
E 5 Operator panel
RJ45, 2m, Cat5e, Flat
B 2 IPC Port No. 1 (expansion mod-
ule)
RJ45 2ft, Cat5e, Flat
F 6 Machine Automation Con-
troller
C 3 Battery No. 1
M12 Straight, 1m, Cat5e
G 7 Battery No. 3
M12 Straight, 1ft, Cat5e, Flat
D 4 Audio Visual Module
RJ45, 2440 m, Cat5e, Flat
H 8 Battery No. 2
M12 Straight, 1ft, Cat5e, Flat
