231 HD-1500 Platform User's Manual 31500-000 Rev A
8.6 Maintaining and Replacing Batteries

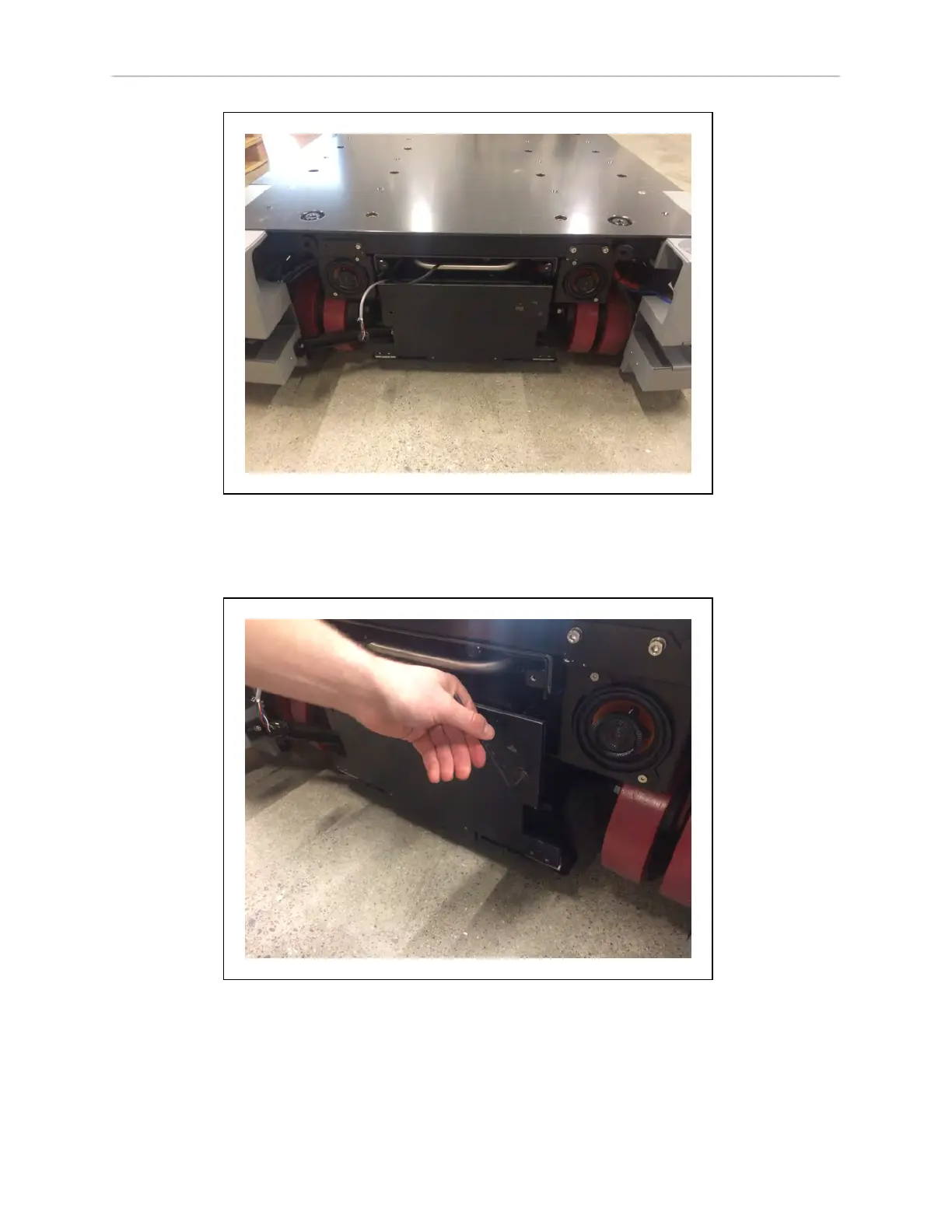

Figure 8-12. AMR Front Skin Removed
2.
Unlatch and open the battery door. The battery door opens all the way out and rests on
the floor. This allows you to use the battery door as a ramp. See the following figures.
Figure 8-13. Unscrewing the Battery Door
