Chapter 8: Maintenance

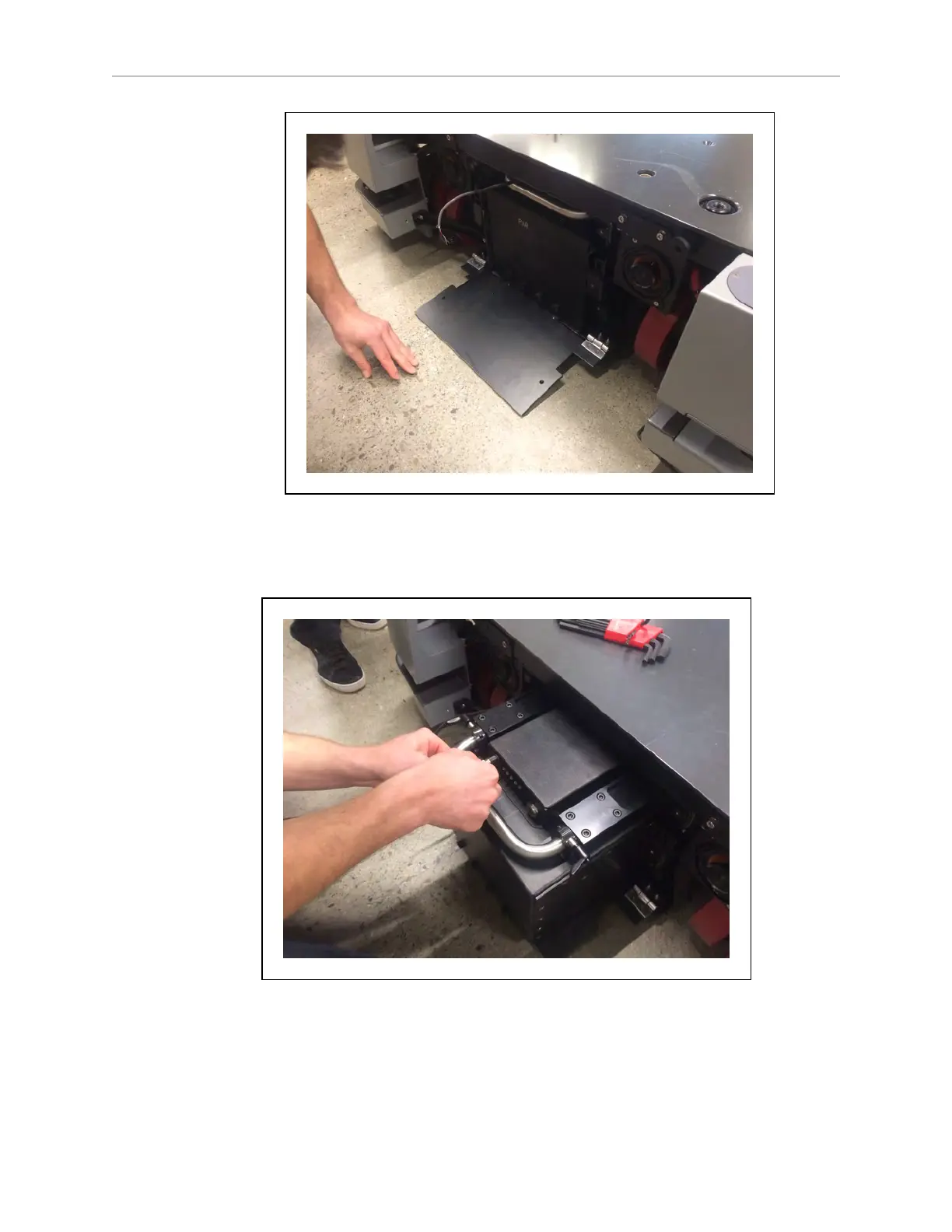

Figure 8-14. Battery Door Opens Out, and Rests on the Floor
3.
Grab the handle and pull out the battery just enough so you can disconnect the Ethernet
cable as displayed in Figure 8-15.
Figure 8-15. Disconnecting the Ethernet Cable
4.
Next, unlatch the handle locks so you can extend the handle out. See the following fig-
ure.
31500-000 Rev A HD-1500 Platform User's Manual 232
