Chapter 8: Maintenance

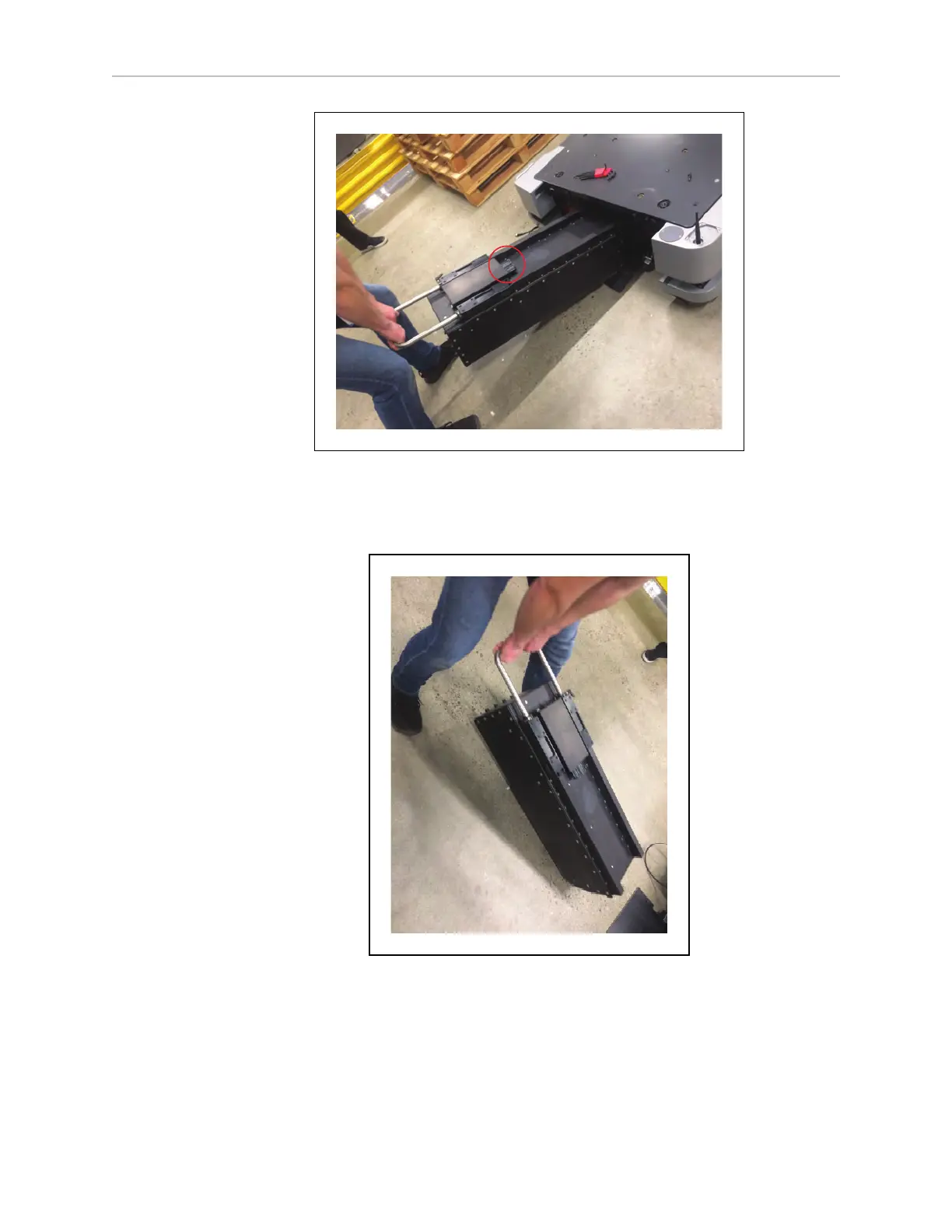

Figure 8-18. Battery Power Connector
6.
The battery case has roller wheels on the back. This allows you to roll the battery
around similar to how you would roll a suitecase.
Figure 8-19. Rolling the Battery Around the Workspace
The shaft shown in the picture acts as a lift point when the battery needs to be lifted
and not rolled.
31500-000 Rev A HD-1500 Platform User's Manual 234
