Chapter 8: Maintenance

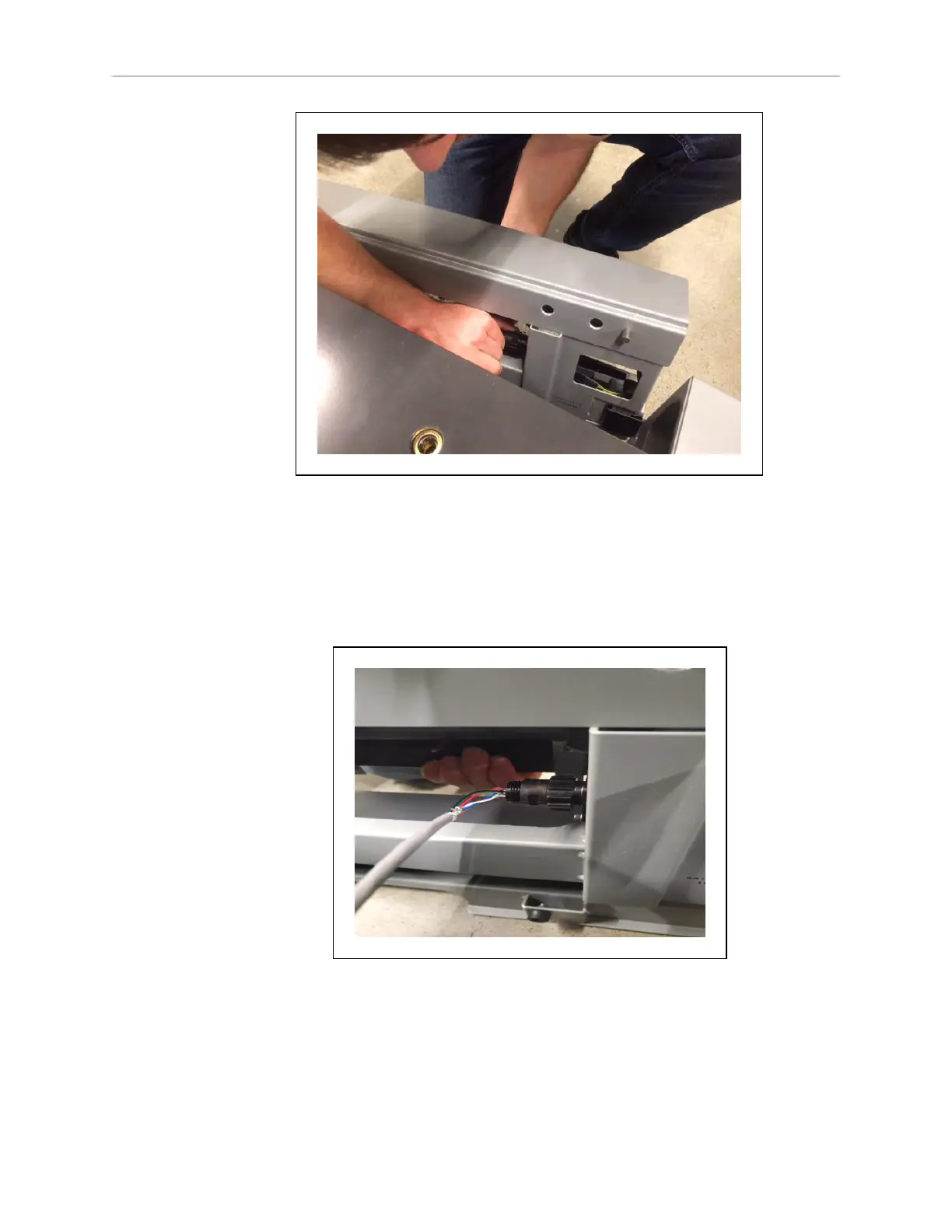

Figure 8-47. Disconnecting the Front Light Connector
4.
Next, Remove the skin completely.
To replace the front skin:
1.
Grip the skin at the two recessed handles and lift the skin.
2.
Connect the front light connector to its receiver on the skin.
Figure 8-48. Front Light Cable Connected to the Skin
3.
Next, locate the alignment receivers on the chassis.
31500-000 Rev A HD-1500 Platform User's Manual 256
