8.7 Replacing Non-Periodic Parts
1.
Use a 4 mm allen wrench to unfasten the four M5 screws. Retain the screws for reat-
taching the skin.
2.
To open the user access panel cover you can place a flat-blade screwdriver in the gap
between the user access panel cover and the top cover, and push the user access panel
cover up as displayed in the following figure. You could also thread a screw in a
threaded hole on the user access panel cover, and use as a knob to open the user access
panel cover.
3.
Grab the cover, and remove the completely.

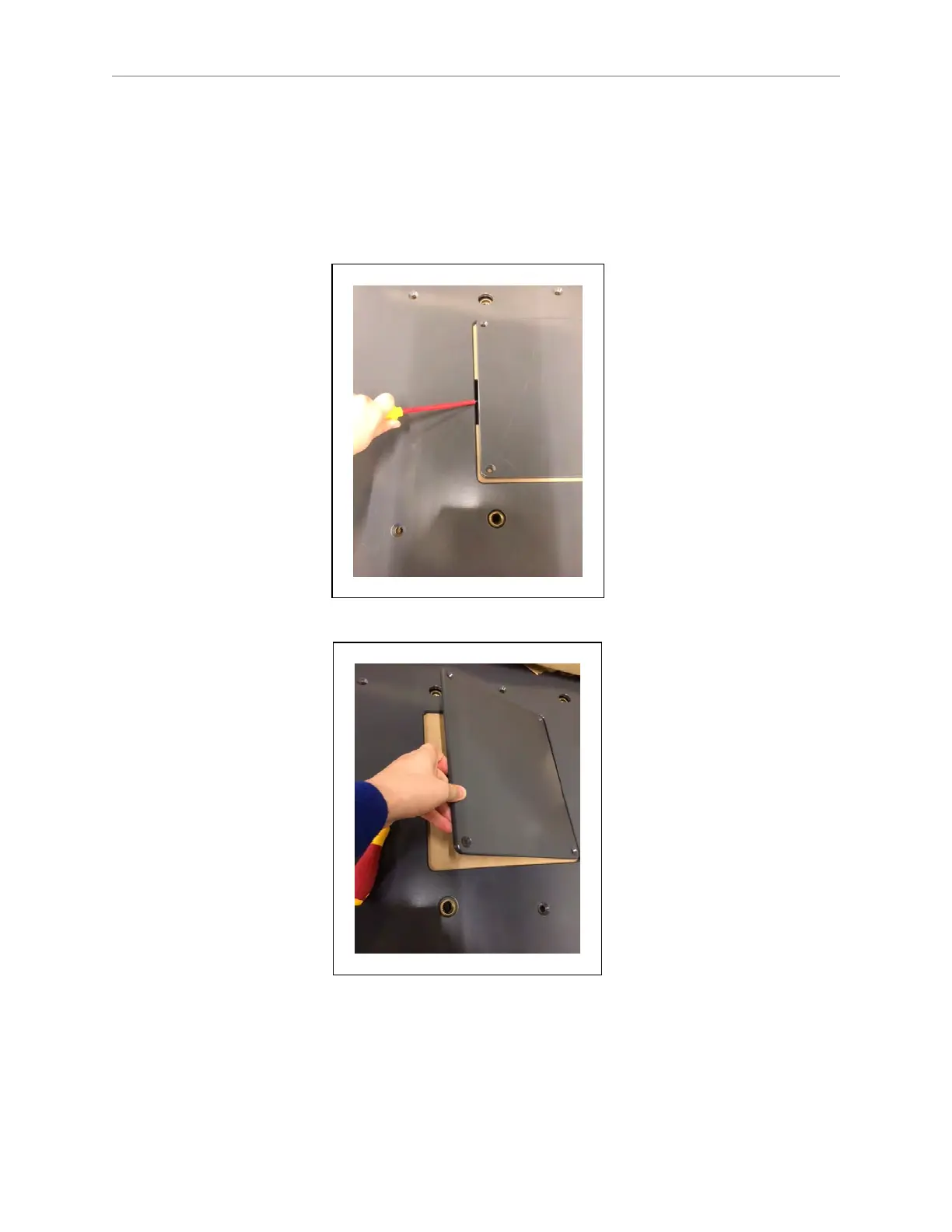

Figure 8-60. Grabbing and Removing the Cover
Reverse these steps to replace the user access panel cover.
