69 HD-1500 Platform User's Manual 31500-000 Rev A
3.4 Unpacking Considerations

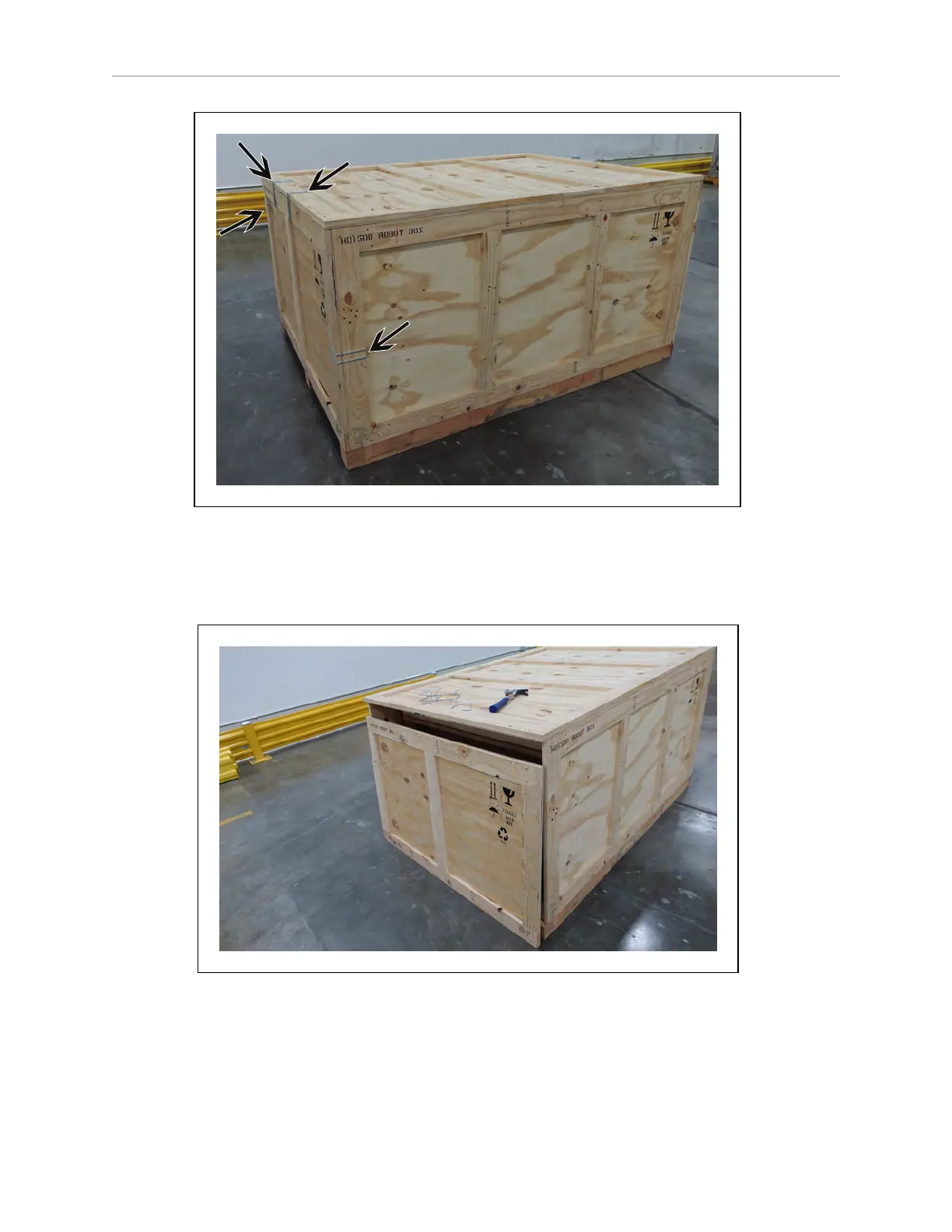

Figure 3-6. Removing the Metal Clips Attaching the Front Panel to the Housing Crate
7.
Pull the front panel and detach it from the crate. The front panel should come off with
little force as it is not bolted to the crate. The metal clips were the only means of attach-
ment.
Figure 3-7. Removing the Front Panel
8.
The HD-1500 crate contains two ramps (located on the top section of the crate, as dis-
played in the following figure). The ramps will be used to transport the HD-1500 onto
