Call
Out
Description
1 Connector D release tab (green)
2 Slide-rail latching bracket release tab (labeled PUSH)

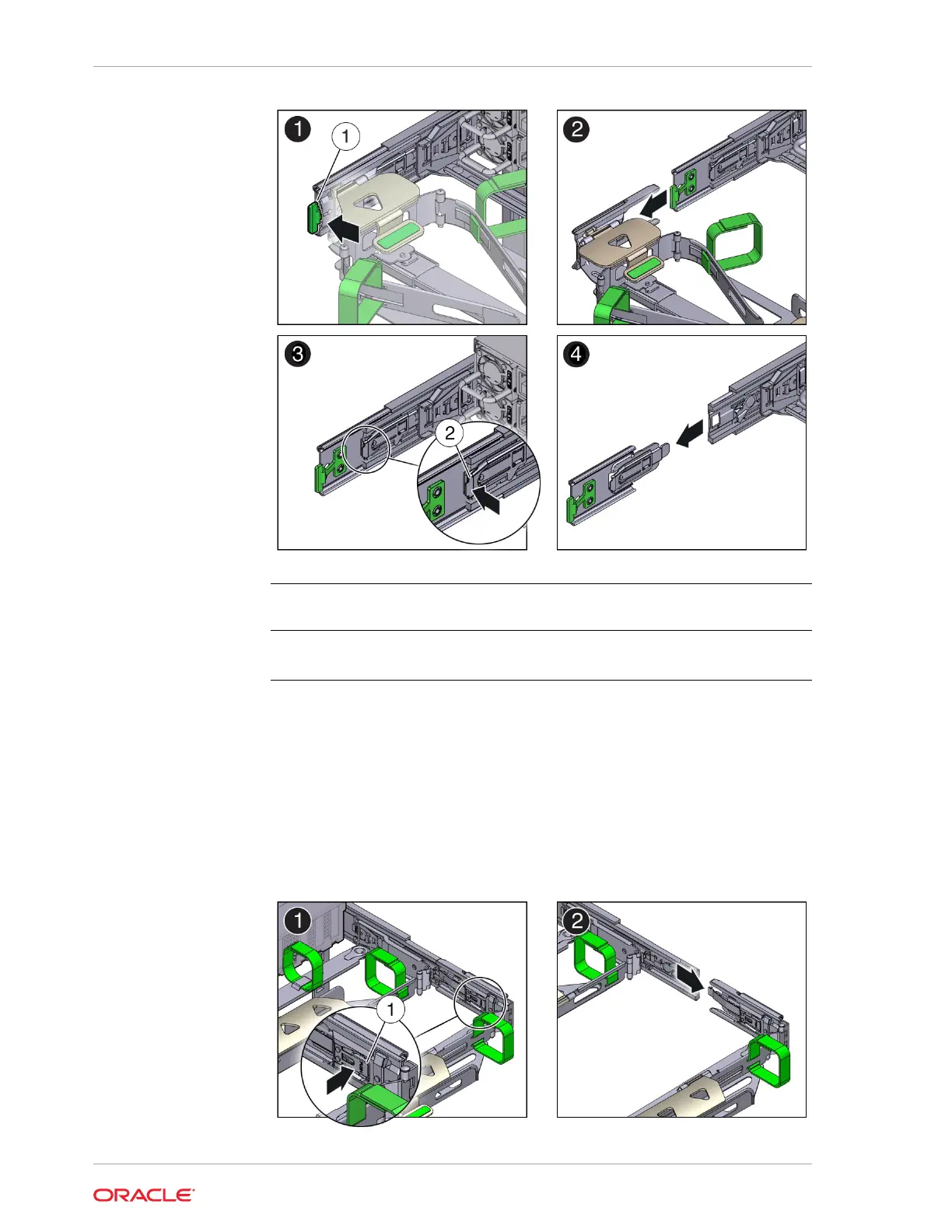

b. Use your right hand to support the CMA and use your left thumb to push in
(toward the left) on the slide-rail latching bracket release tab labeled PUSH
(callout 2), and pull the latching bracket out of the left slide-rail and put it aside
[3 and 4].
5. To disconnect connector C:
a. Place your left arm under the CMA to support it.
b. Use your right thumb to push in (toward the right) on the connector C release
tab labeled PUSH (callout 1), and pull connector C out of the right slide-rail [1
and 2].
Appendix C
Rackmounting the Server
C-26
