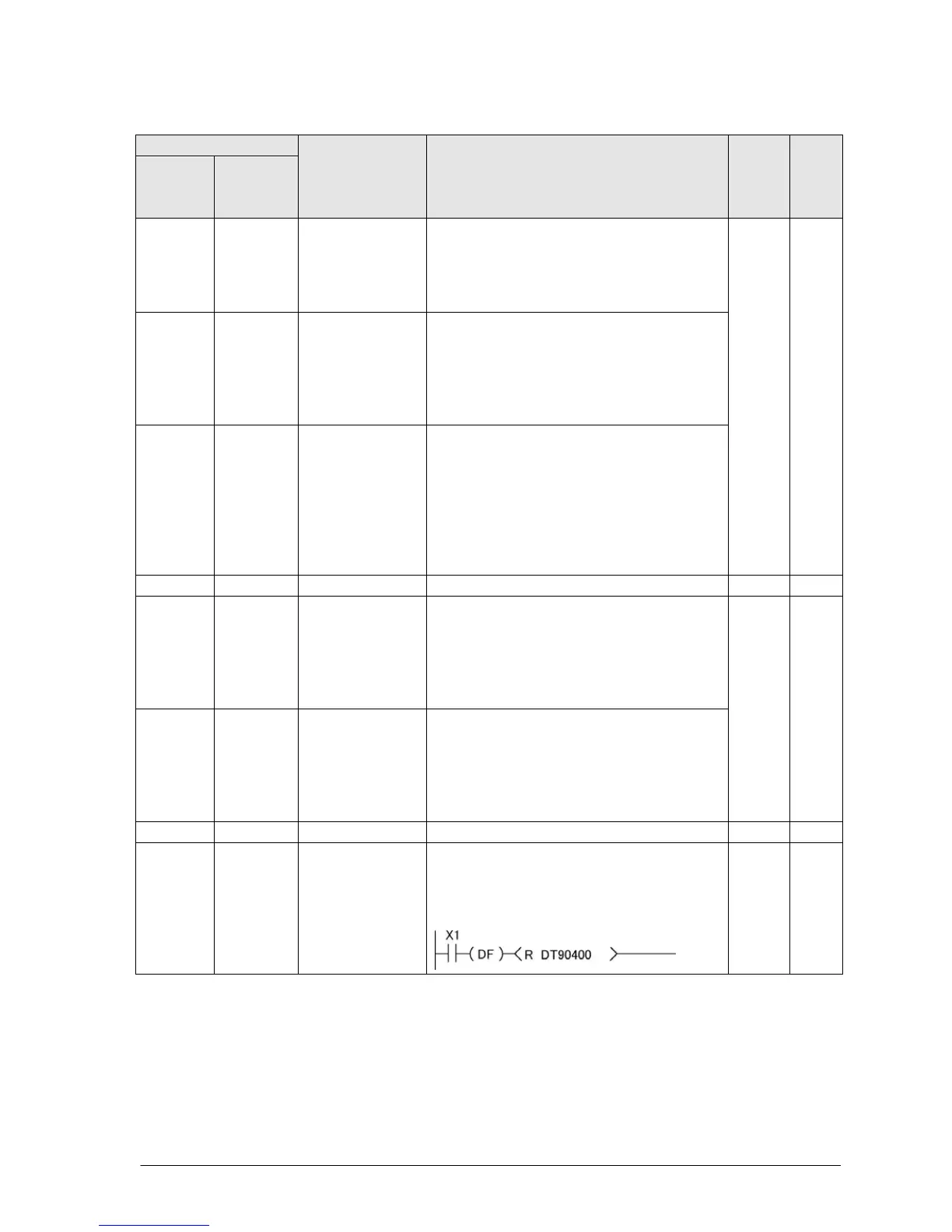

11-49
FP2/FP2SH/FP10SH/FP3 (A: Available, N/A: Not available)
Address
Name Descriptions
Read-
ing
Writ-
ing
FP3
FP2/
FP2SH
FP10SH
- DT90264
File register
bank (shelter
number)
(Available
PLC: FP2SH)
The shelter number of the file register
bank is stored here.
A N/A
- DT90265
Free compile
memory
capacity
(Available
PLC: FP2SH/
FP10SH)
Free capacity of compile memory is
stored here. If the program memory is
120K steps, the capacity of 1st program
block is stored.
- DT90266
Free compile
memory
capacity for
program block
2
(Available
PLC: FP2SH/
FP10SH)
If the program memory is 120K steps, free
capacity of program block 2 compile
memory is stored here.
-
DT90267
Not used
-
N/A N/A
- DT90268
Index register
bank (current
value)
(Available
PLC: FP2SH/
FP10SH)
The current value of index register bank is
stored here.
A A
- DT90269
Index register
bank (shelter
number)
(Available
PLC: FP2SH/
FP10SH)
The shelter number of index register bank
is stored here.
- DT90399 Not used
-
N/A N/A
- DT90400
Number of the
error alarm
relay which
went on
(Available
PLC: FP2SH/
FP10SH)
The total of the error alarm relay which
went on is stored here. (Max. 500)
To reset all data in the error alarm buffer,
use an RST instruction and DT90400.
A N/A
