5 Repair and Disassembly Tools Required
102
2

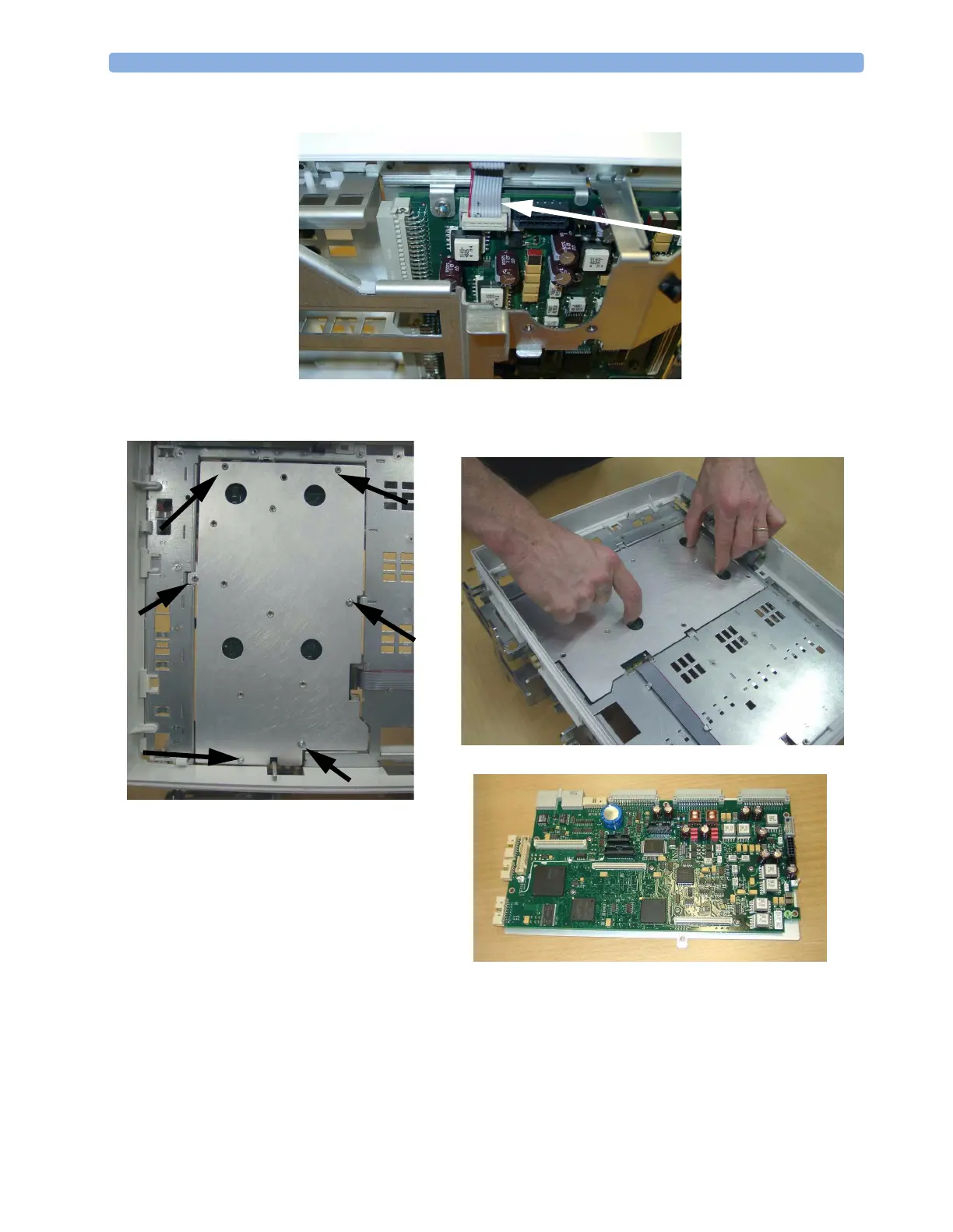

Remove the LED board connector.
Reassembly Note: Reach under and plug in the cable on the side without the sheet metal.
3 Remove the six screws on the back and lift the board out together with its metal stabilizer.
Reassembly Note: Replacement main boards do not come with a metal stabilizer. You must remove
the stabilizer from the old board and attach it to the new one.
