Philips IntelliVue MP70 Service Manual

5 Repair and Disassembly Tools Required
96
3

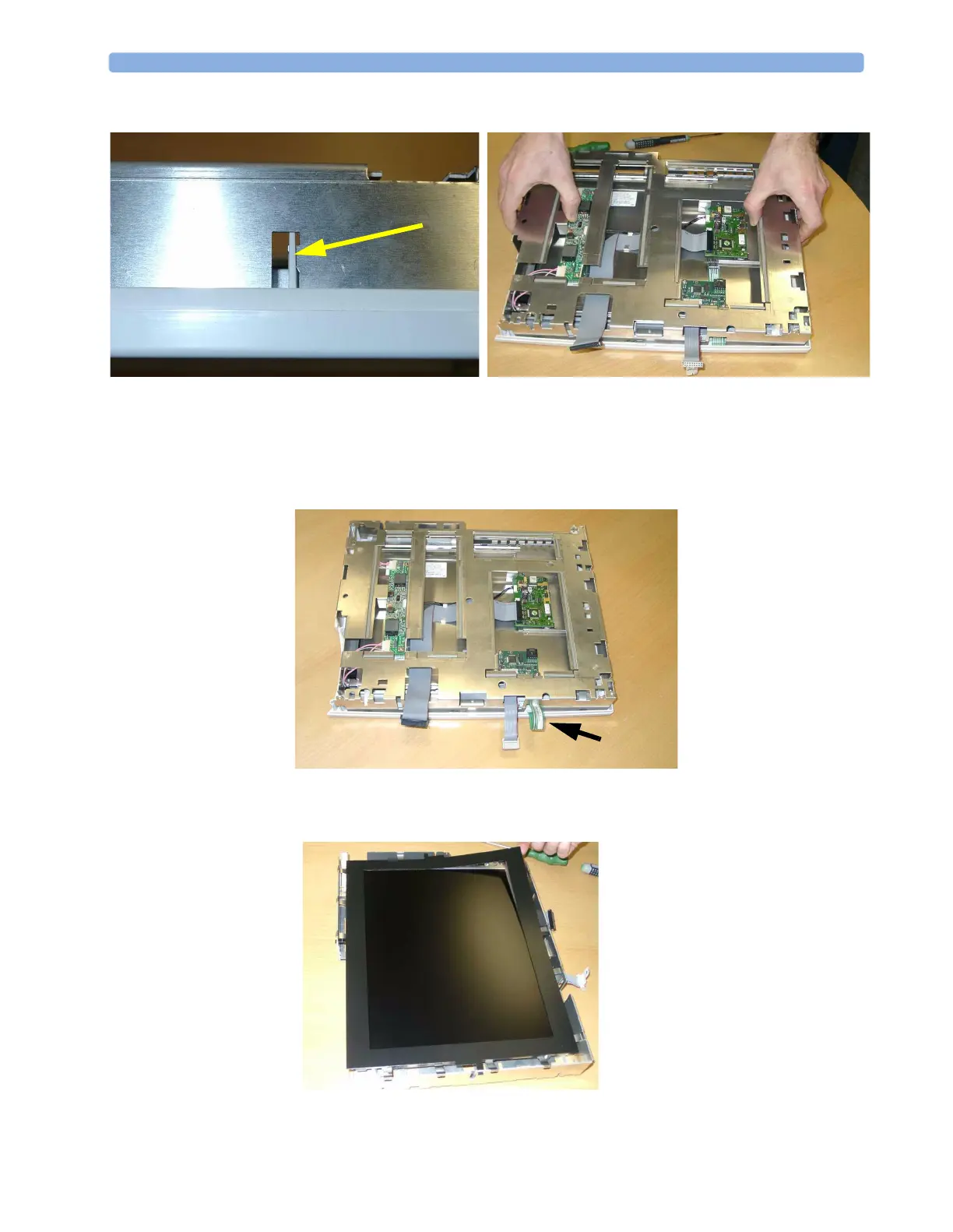

Release the snaps on the side and pull off the display assembly from the panel.
Reassembly Notes:
• You must replace the touch panel and touch controller board together. The monitor will not operate
if they do not match.
• Orient the touch panel assembly to the LCD assembly and feed the ribbon connector upwards when
reassembling.
Exchanging the LCD Assembly
1 Pull off the LCD panel display adapter.
Ribbon Connector
