Philips Clinical Network 7 Installation Instructions
149
Philips Clinical Network
Refer to the installation instructions in the M3185A Installation Manual.
Flexible Nurse Call Relay
Connections

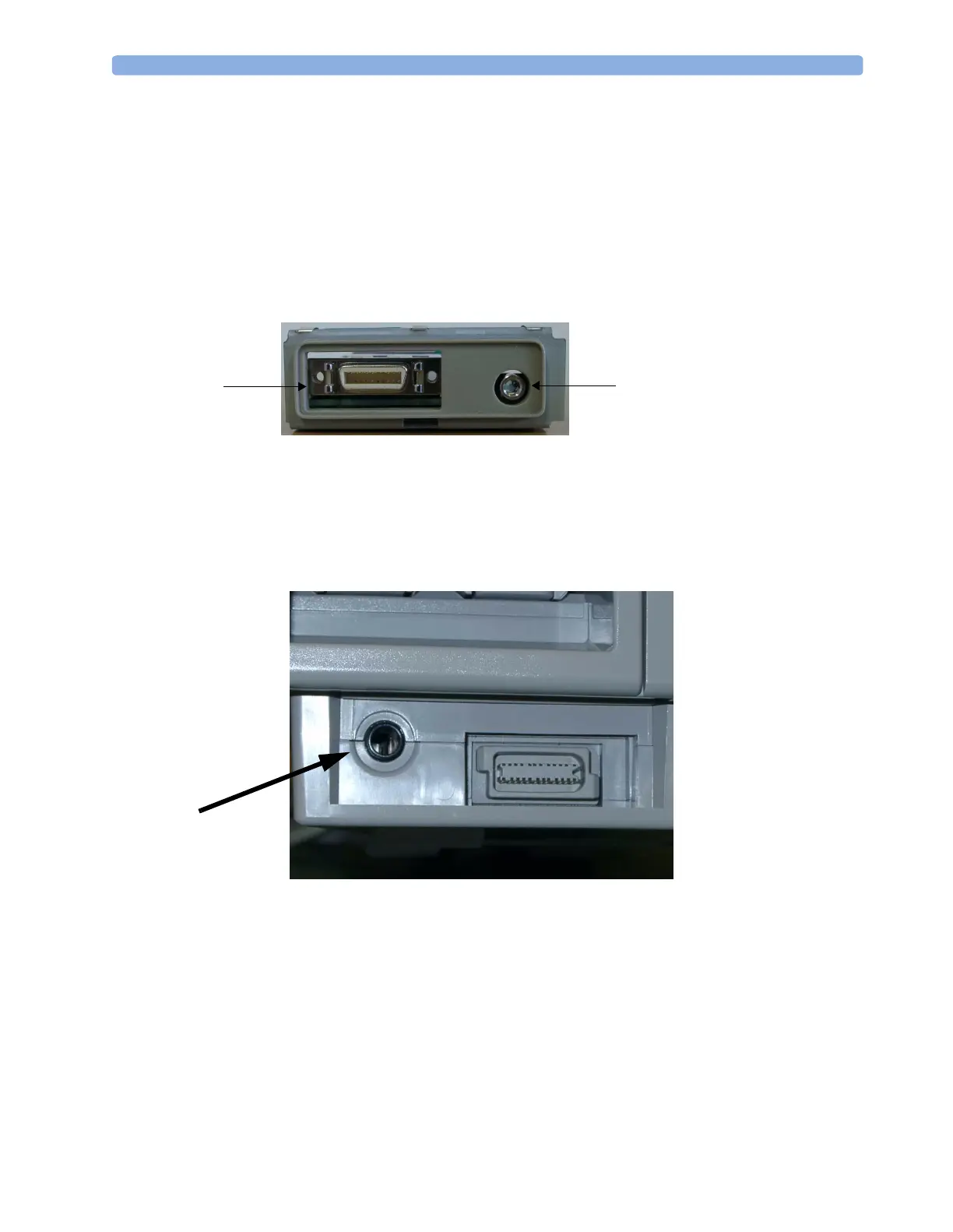

Figure 26 Flexible Nurse Call Relay Connections at Monitor
ECG Out Functionality
Connections
The cable M1181A #A62 has both ends terminated. The photograph above shows the monitor side
connection.
If using a non-terminated cable:
1 Strip 5 mm (3/16") insulation from leads and twist conductor strands tightly.
2 Solder leads to the connector as shown in the following diagram.
Newer connection.
Flexible relay,
software configurable
Traditional style.
Can be used with any existing
alarm system
ECG Out Connector
(Monitor Side)
To Next Page
