Philips IntelliVue MP70 Service Manual

Tools Required 5 Repair and Disassembly
89

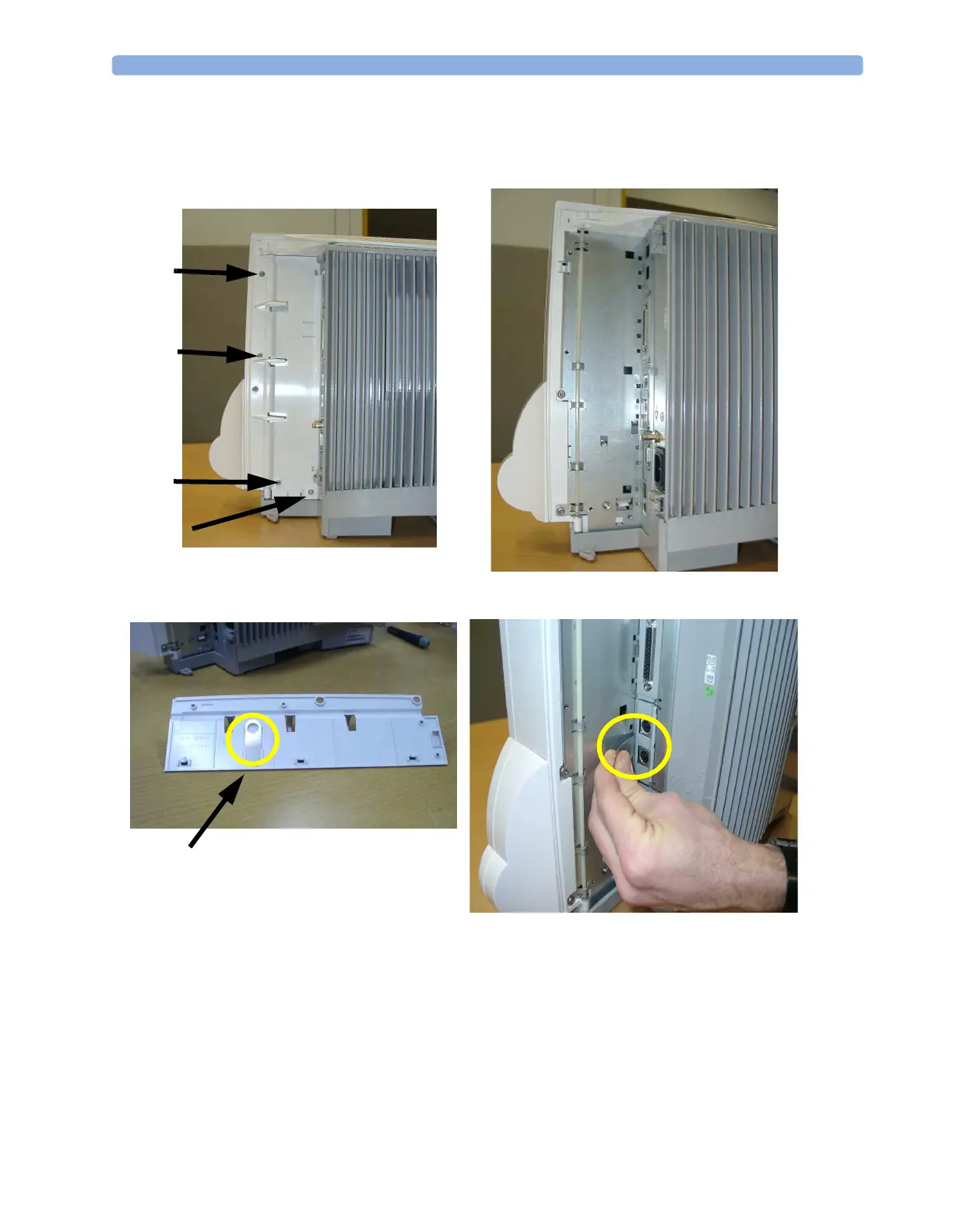

Removing the I/O Boards
1 Remove the cable management cover as described in Disconnecting the SpeedPoint.
2 Remove the four small screws with a T10 screwdriver and take off the white plastic cover.
3 Use the board removal tool located inside the white cover to pull out the I/O boards.
Reassembly Note: You must place the MSL/LAN board in the bottom slot. For correct placement of
the boards, see I/O Boards in the Theory of Operation section.
