Philips IntelliVue MP70 Service Manual

5 Repair and Disassembly Tools Required
90
Removing the ECG Out board if no SRL2 board is plugged
For instructions on removing the ECG Out board when an SRL2 board is plugged see Removing the
ECG Out Board with an SRL2 Board plugged.

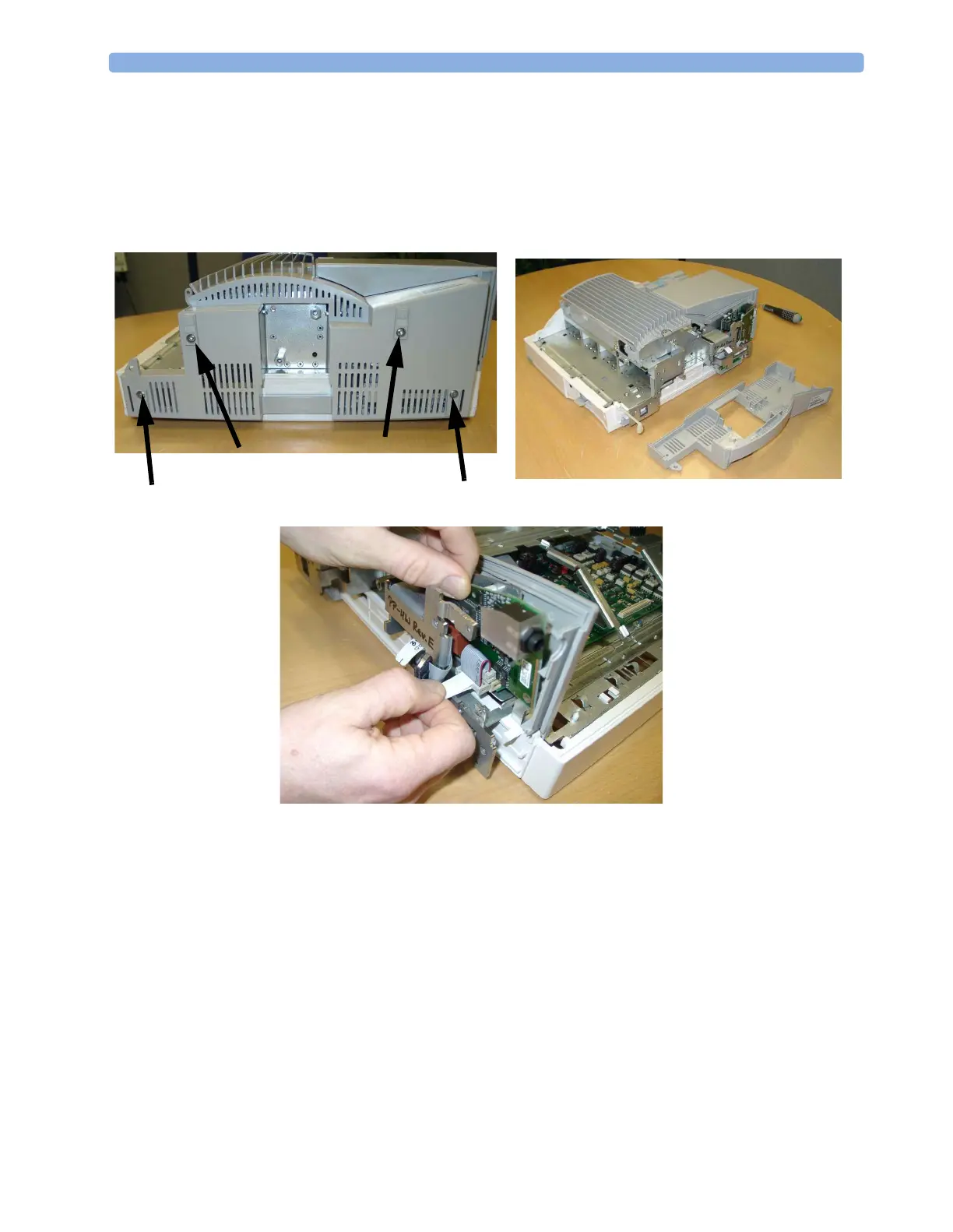

1 Remove the mounting plate from the monitor if attached.
2 Remove the four screws with a T20 screwdriver and pull off the bottom cover.
3 Unscrew the screws on the ECG Out board and pull on the tab to remove the cable.
