Tools Required 5 Repair and Disassembly
95

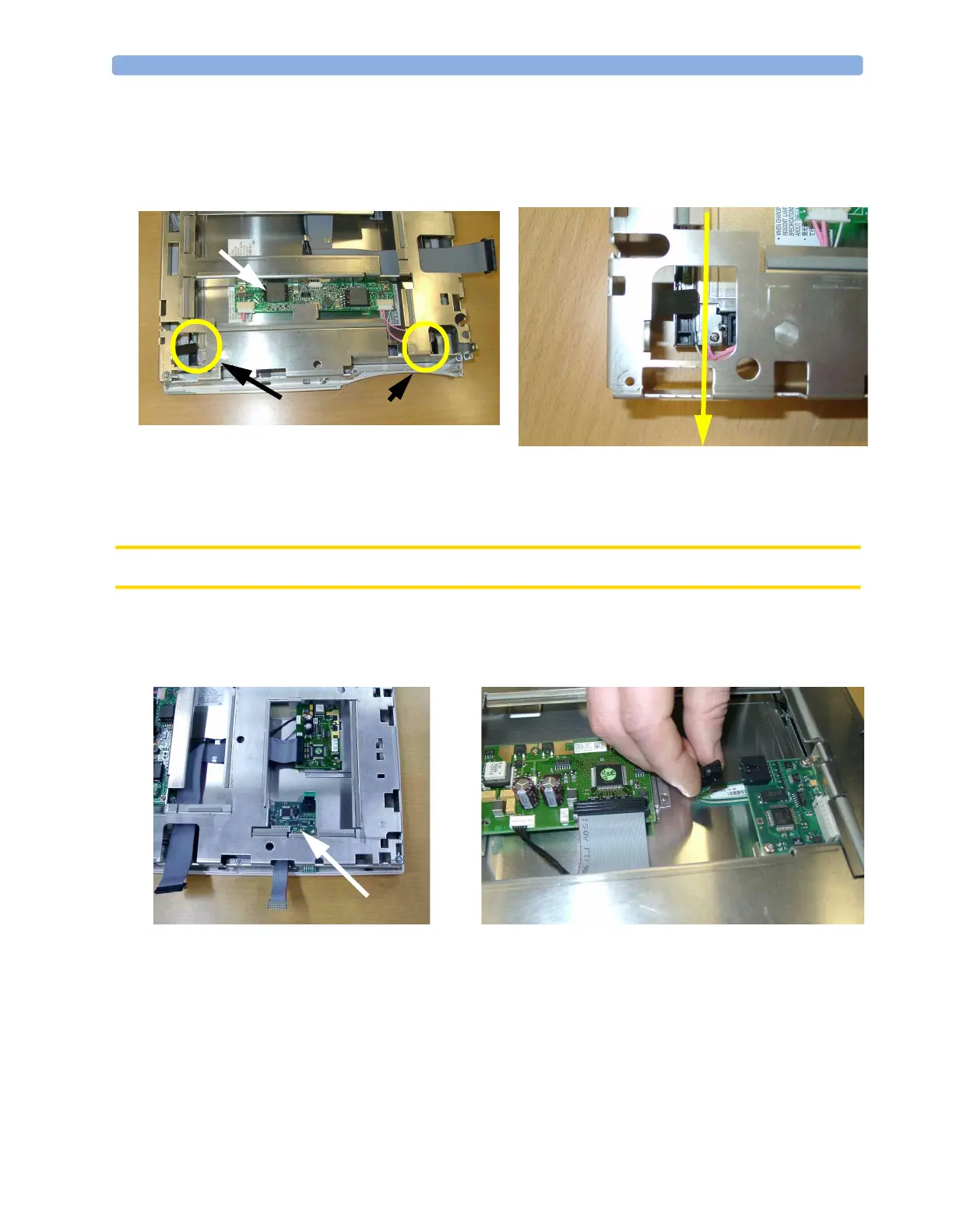

Removing the Backlights
1 Remove the two screws that hold the backlight assemblies in place.
2 Remove the cables from the backlight inverter board and slide the backlight assemblies gently out
of the side.
Further Disassembly
Exchanging the Touchscreen
CAUTION This procedure must be performed in a dust free environment.
1 Separate the two monitor halves as described in Separating the front and back half of the monitor.
2 Unplug the cable from the touch controller board to the touch panel and remove the six screws
that hold the plastic bezel with a T10 screwdriver.
Backlight Inverter Board
Slide in this direction
Backlight Locations
Backlight Inverter Board
To Next Page
