Plug-in Modules 5 Repair and Disassembly
107
Plug-in Modules

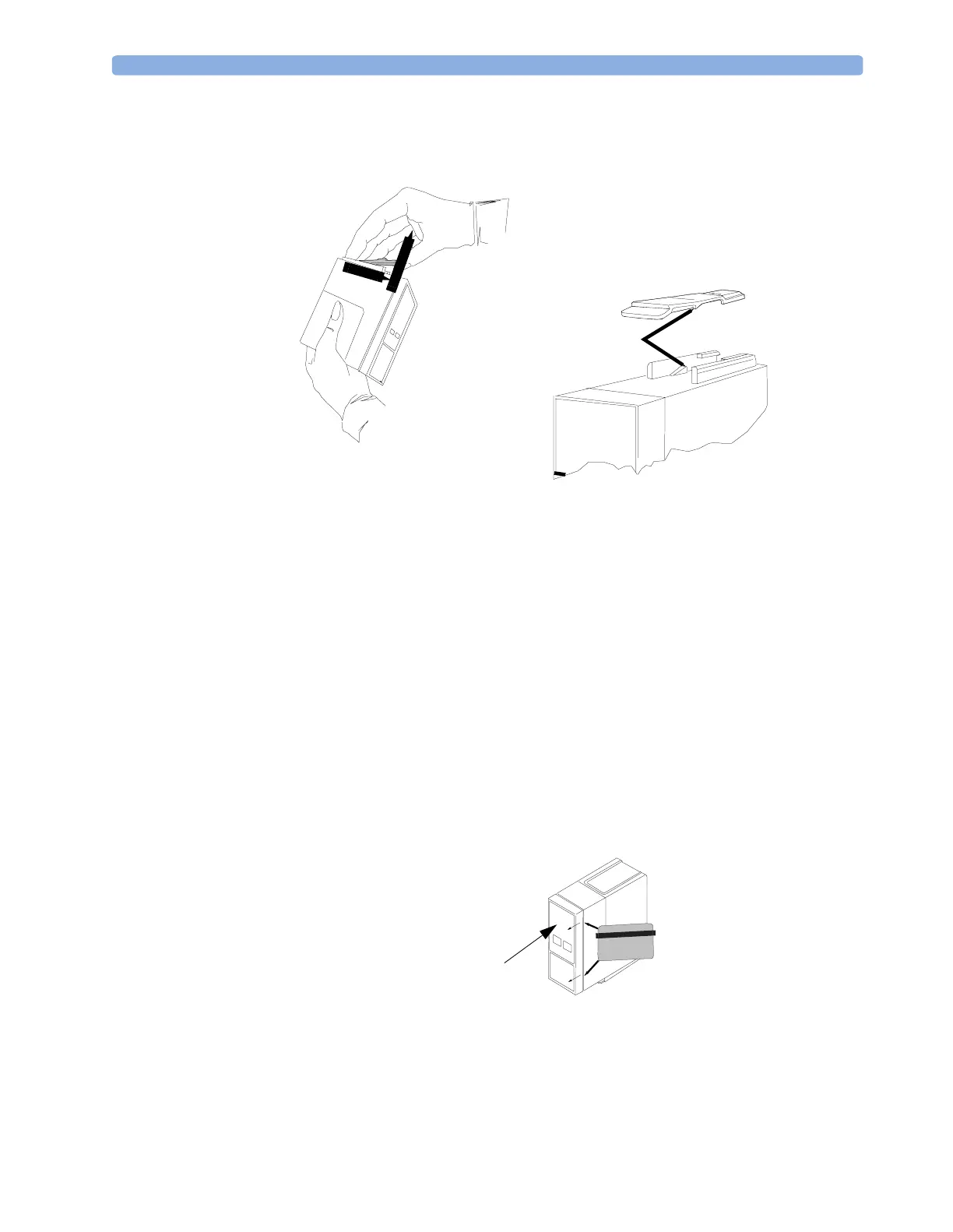

The snap lock holds the plug-in module in the FMS.
To remove the snap lock:
1 Grip the module firmly in one hand and using your thumb, pull the front edge of the snap lock
away from the plug-in module so that the lug on the snap lock clears the retaining edge of the
module.
2 Push on the rear edge of the snap lock to move the snap lock through the slot toward the front of
the module until it is clear.
To replace the snap lock:
1 Locate the snap lock into the slot on the bottom of the module.
2 Slide the snap lock toward the rear of the module until the lock snaps into position.
Plug-In Module Disassembly
Disassembly of the parameter module enables replacement of the front assembly.
Figure 6 Removing the Module Front Housing
rsnaplck.mif
‘
rsnapcth.mif
Front Housing
Remove
Front
Housing
To Next Page
