Philips IntelliVue MP70 Service Manual

5 Repair and Disassembly Flexible Module Server (FMS) Disassembly
106
10

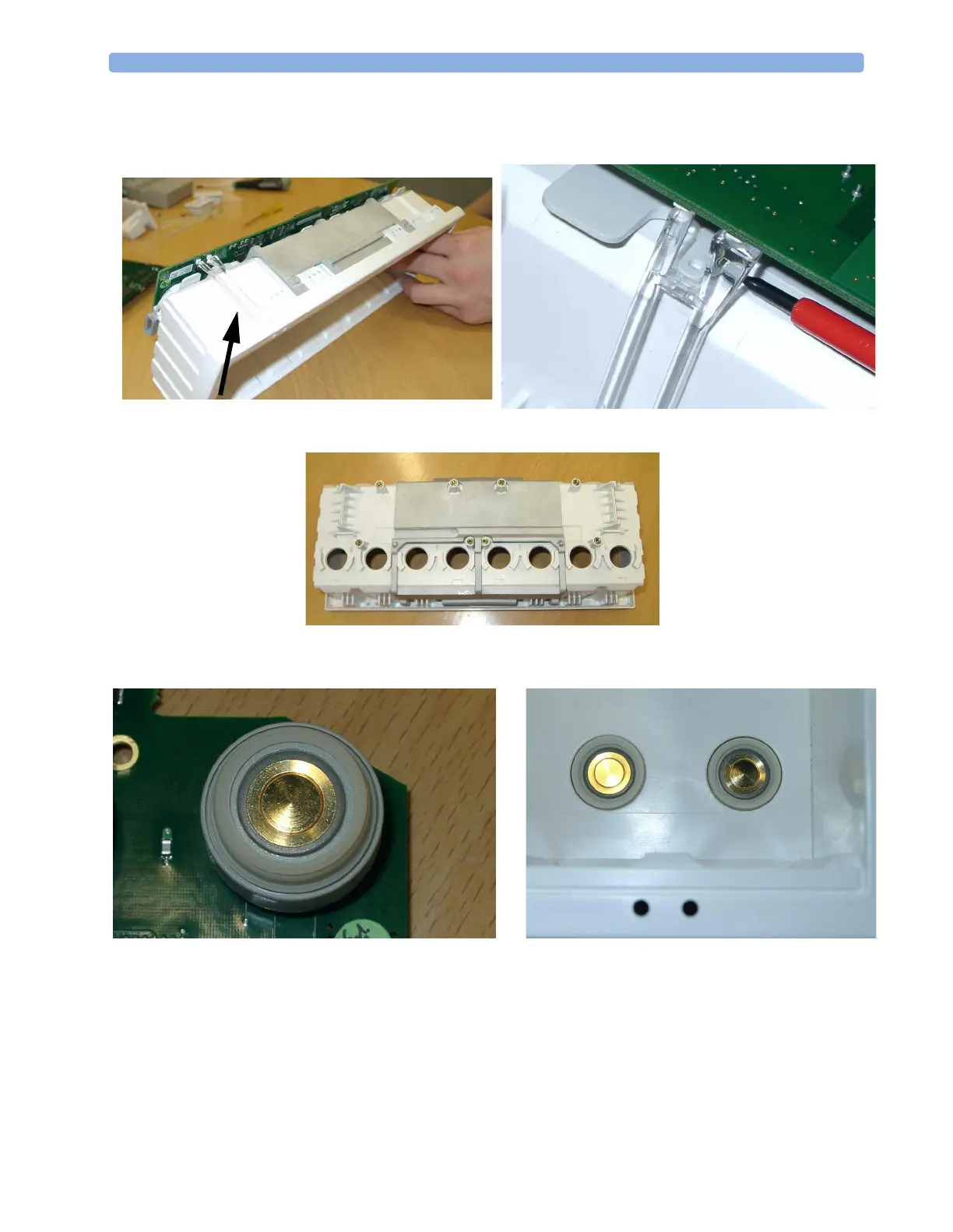

Unsnap the lightpipe.
Reassembly Note: You must snap the lightpipe bottom into place before inserting the top into the tab.
11 Pull off the main board.
Reassembly Note: Make sure that the rubber seal around the module connectors is inserted properly
into the front housing.
Bottom
