Philips IntelliVue MP70 - Setting Up the Gas Return

Installation and Patient Safety 9 Anesthetic Gas Module
181
Table 1: Gas Sample Return Equipment
NOTE The M1655A may not be available in all countries.
Setting Up the Gas Return
(see diagram Figure 37)
1 Fit the male luer lock connection (2) of the shorter tube, to the female side of the M1656A Gas
Exhaust Return Filter.
2 Fit the female luer lock connection (3) of the longer tube, to the male side of the M1656A Gas
Exhaust Return Filter.
3 Fit the open end (7) of the longer tube to the AGM’s Anesthetic Gas Exhaust.
4 Fit the open end (5) of the shorter tube to the ventilation circuit.

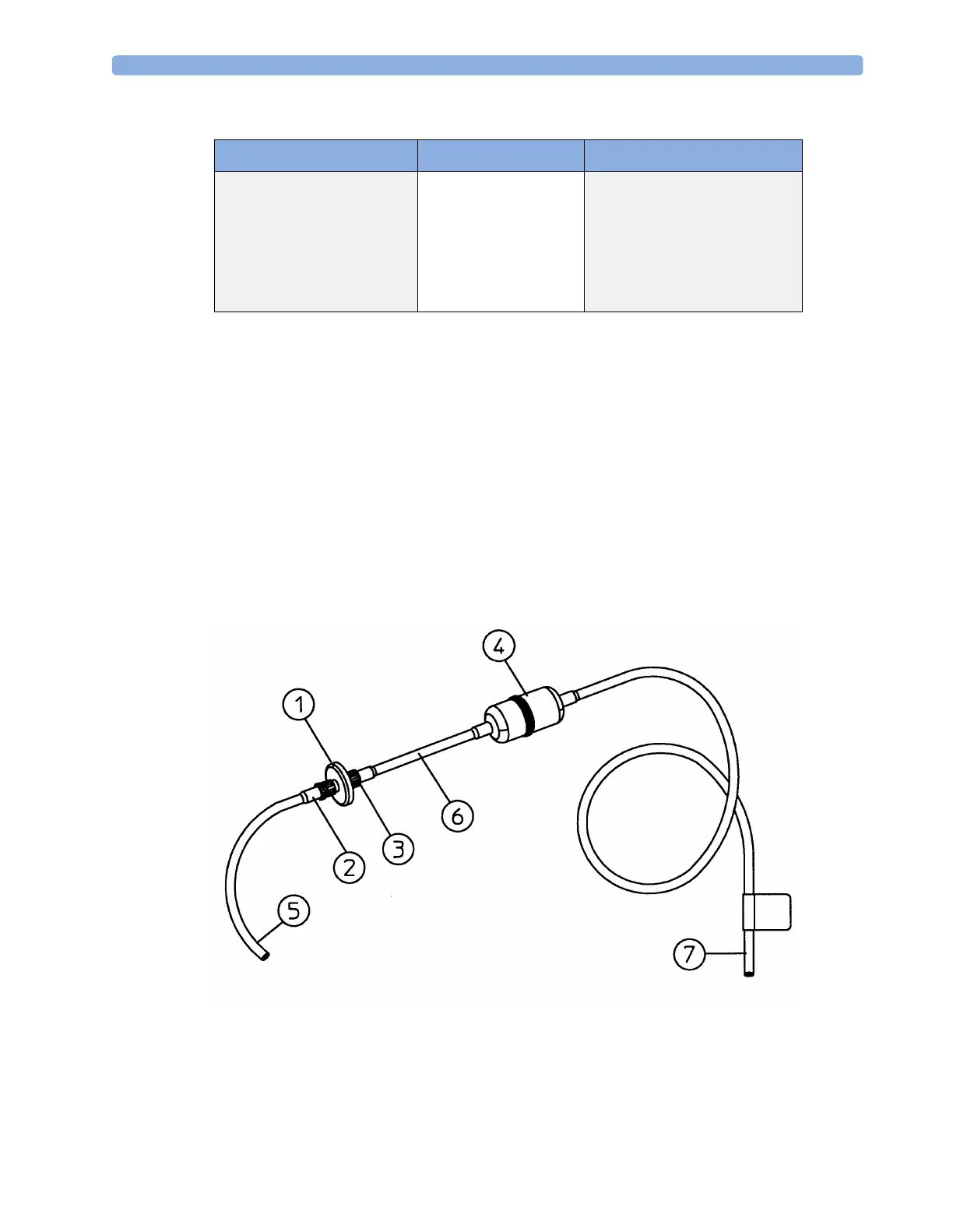

Figure 37 Setting Up the Gas Return
1 M1656A Gas Exhaust Return Filter
M1655A Gas Exhaust Return Line comprising:
Equipment Part Number Comments
Gas Exhaust Return Line M1655A Tu bi n g i n c l u d e s t w o p a r t s :
Tube A = 50cm long
Tube B = 3m long
Gas Exhaust Return Filter M1656A Single patient use only
