7 Installation Instructions Installing Remote Devices
140
Connections

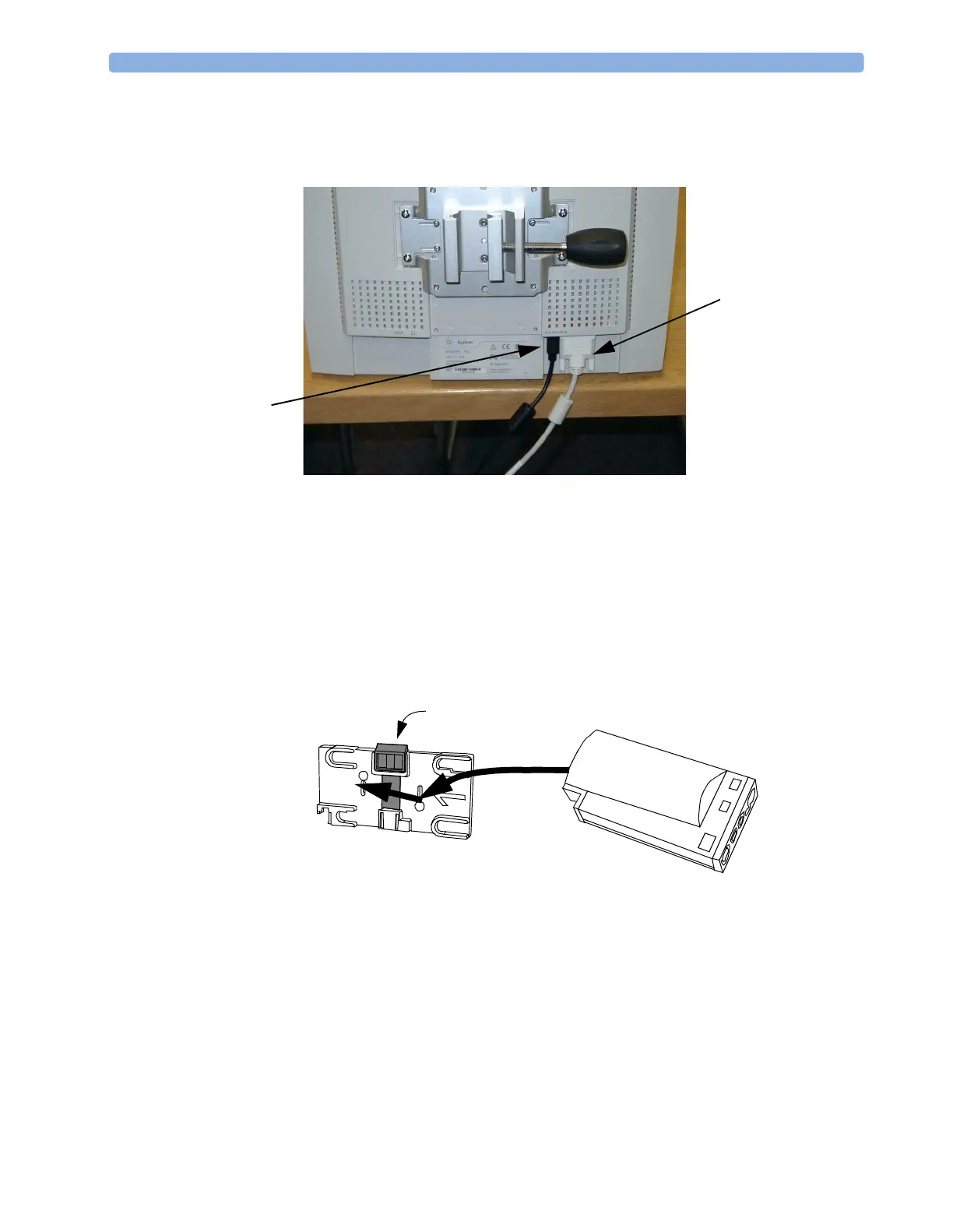

Connect the cables to the display as shown in the photograph.
Flexible Module Server and/or Multi-Measurement Server
Attaching the MMS to a Mount
1 Make sure the Measurement Server is oriented correctly relative to the mount (see the picture
below).
2 Place the Measurement Server on the back mount. If it is not tight against the mount, slip it in the
direction of the measurement connectors until it is.
3 Slip the Measurement Server forward until it clicks into place.
Detaching the Measurement Server from a Mount
1 Press and hold the latch (in the middle at the top of the mount) away from the Measurement
Server.
2 Slide the Measurement Server off the mount in the direction of the measurement connectors.
Positioning the Measurement Server on a Clamp Mount
If you have your Measurement Server on the clamp mount, you can have it in one of four positions.
You can reposition it as follows:
