Maintaining the Anesthetic Gas Module 9 Anesthetic Gas Module
201
3
Using a flat-tipped screwdriver, pry off the short section of tubing (4) that secures the room-air
filter to its bracket (3).
4 Remove the room-air filter from its bracket.
Replacement
To replace the room-air filter (refer to Figure 42):
1 Push the room-air filter into the locating hole provided in its bracket (3).
2 Push on the short section of tubing (4) that secures the room-air filter to its bracket.
3 Replace the pneumatic tubing (2) to the underside of the room-air filter.
4 Using a cross-tipped screwdriver, replace the screw and washer (1) securing the room-air filter’s
mounting bracket.
Pump Filter

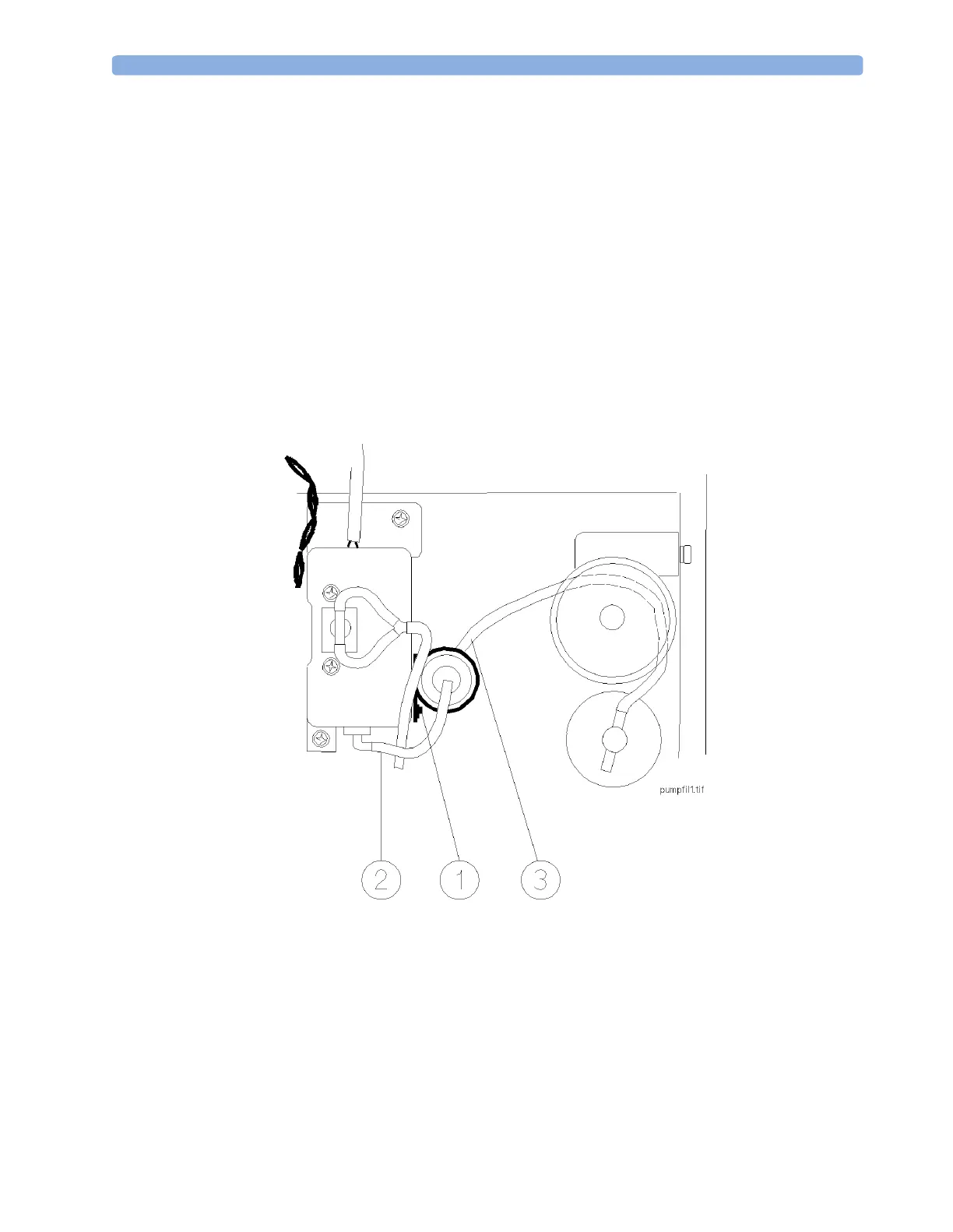

Figure 43 Removing and Replacing the Pump Filter
Removal
To remove the pump filter (refer to Figure 43):
1 Using a cross-tipped screwdriver, remove the screw securing the pump filter(1).
2 Lift the pump filter and remove the pneumatic tubing from the pump exhaust (2).
3 Press the filter out of its plastic clip and remove the tubing from the underside of the pump filter
(3).
Replacement
