Philips IntelliVue MP70 Service Manual

Installing Remote Devices 7 Installation Instructions
141
1
Press and hold the mount latch toward the clamp screw.
Rotate the Measurement Server and mount until you get it to the position you want.
2 Release the mount latch, and make sure it is clicked into one of the four slots on the back of the
mount.

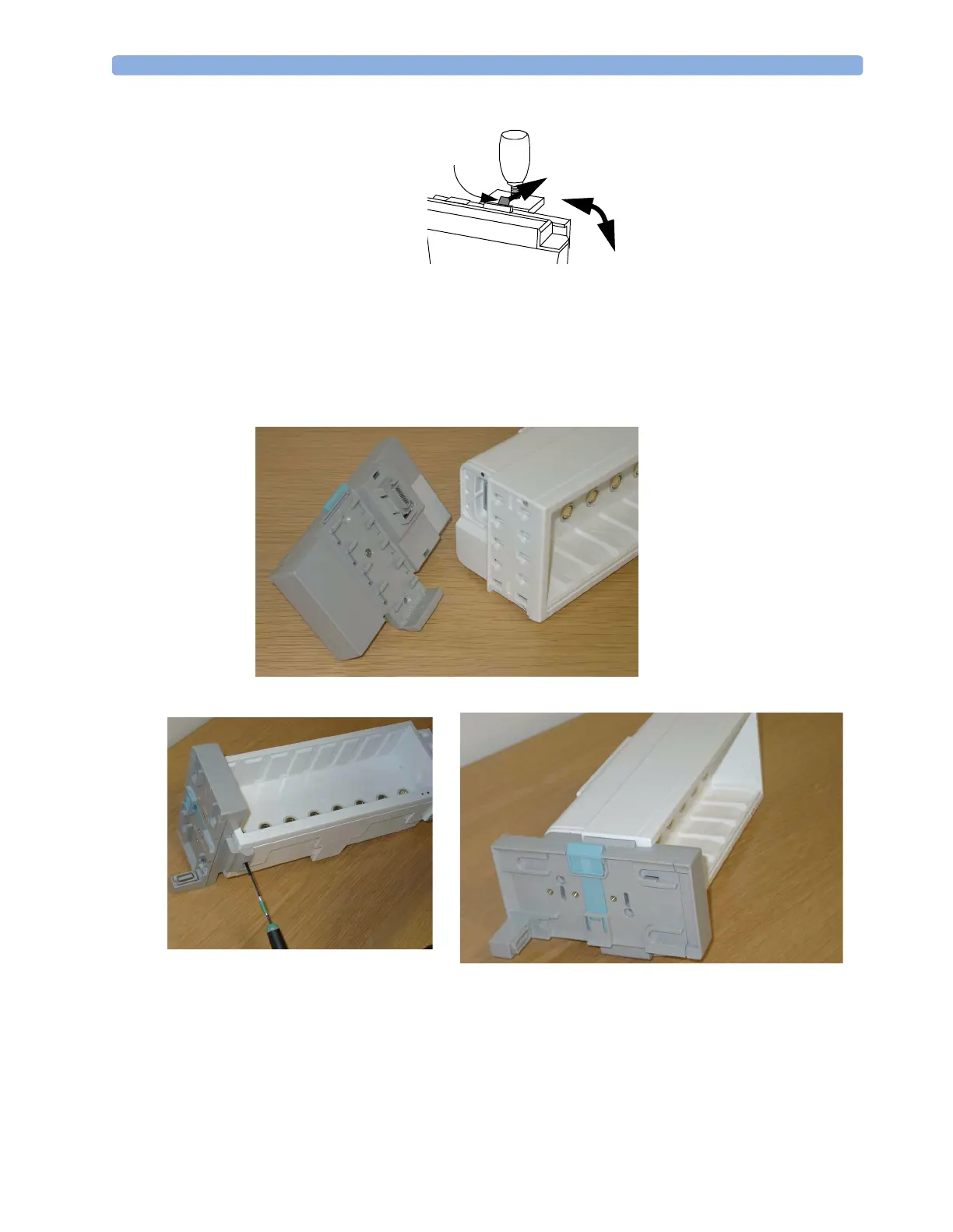

Mounting the MMS Mount to the FMS (M8048A)
1 Connect the MMS Mount to the FMS and snap it into place.
2 Insert and tighten the screw at the bottom of the FMS
Mount
Latch
