Plug-in Modules 5 Repair and Disassembly
111
NOTE If you accidentally try to remove the wrong side of the bottom cover, you will notice that it is attached
to the inside of the Extension with a ribbon connector and that the dual link bar prevents you from
removing it completely. Do not try to forcibly remove the wrong side of the M3015A cover; you
cannot access replaceable parts from this side.

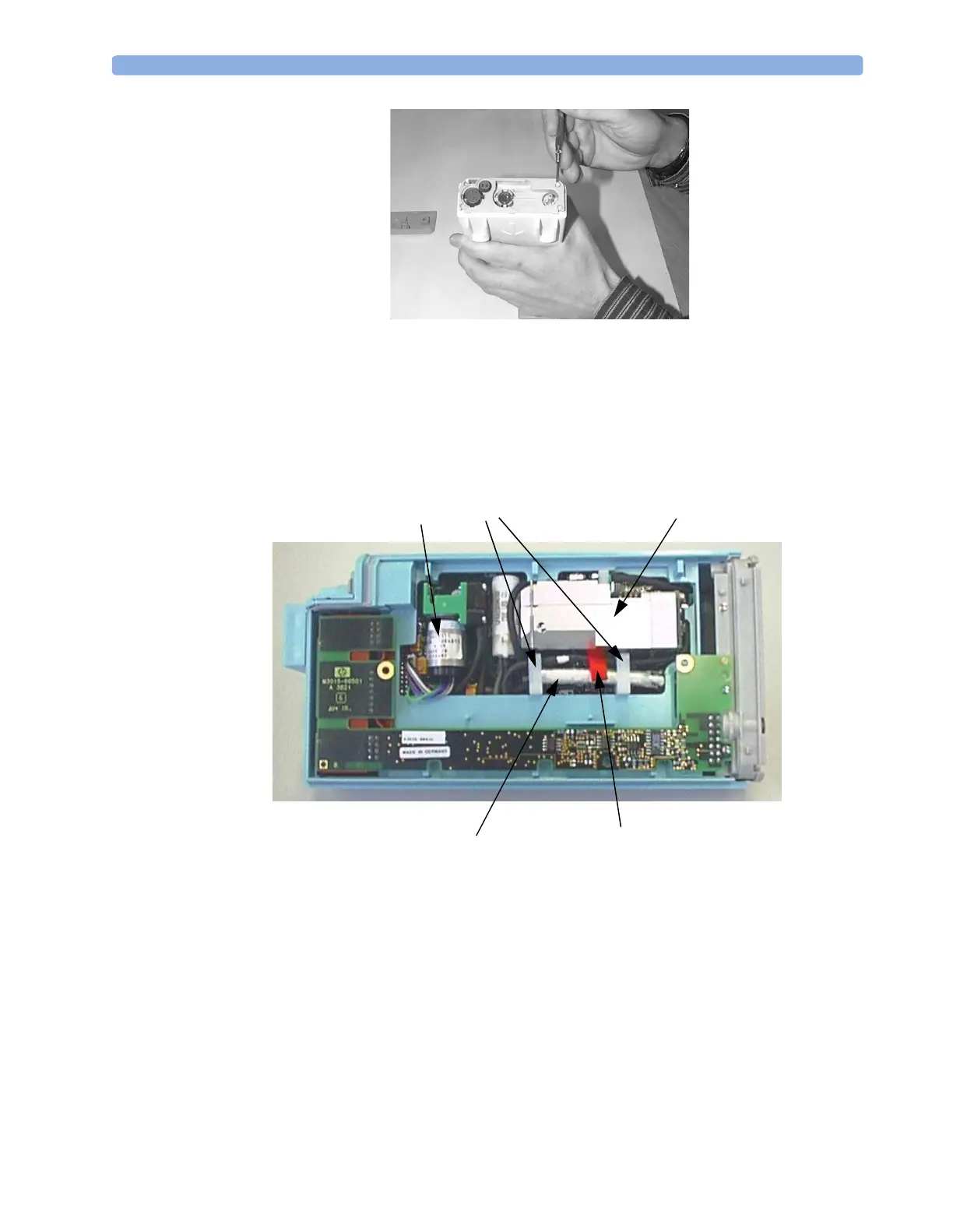

The following illustration shows the location of the replaceable parts in the M3015A Measurement
Server Extension.
Removing the CO
2
Scrubber
To remove the CO
2
Scrubber, do the following:
1 Locate the CO
2
Scrubber in the Extension.
Infrared Lamp Assembly
Pump
CO
2
Scrubber
Red band for removing the IR Lamp when
the Assembly has been opened
Brackets holding the
CO
2
Scrubber
