5 Repair and Disassembly Tools Required
92

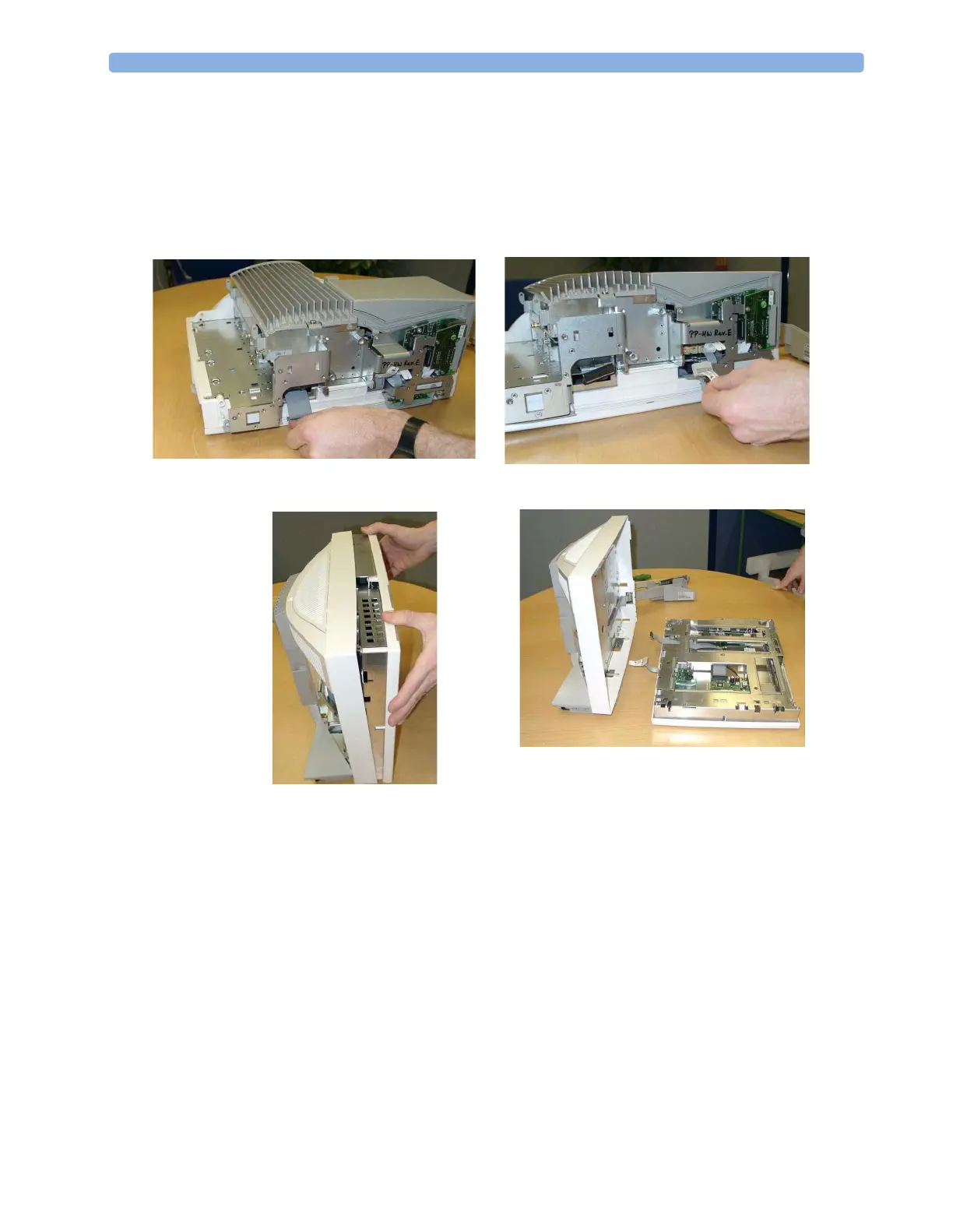

Separating the front and back half of the monitor
1 Remove the bottom cover as described in Removing the ECG Out board if no SRL2 board is plugged.
2 Remove integrated module slot and measurement server mount as described in Removing the
Integrated Module Slot, the Measurement Server Mount or blank covers.
3 Unplug the video cable by pulling downwards and the touch controller cable by pulling outwards
on the tab.
4 Place the monitor in an upright position and pull off the display assembly.
