2 Theory of Operation Integrated Monitor Theory of Operation
18

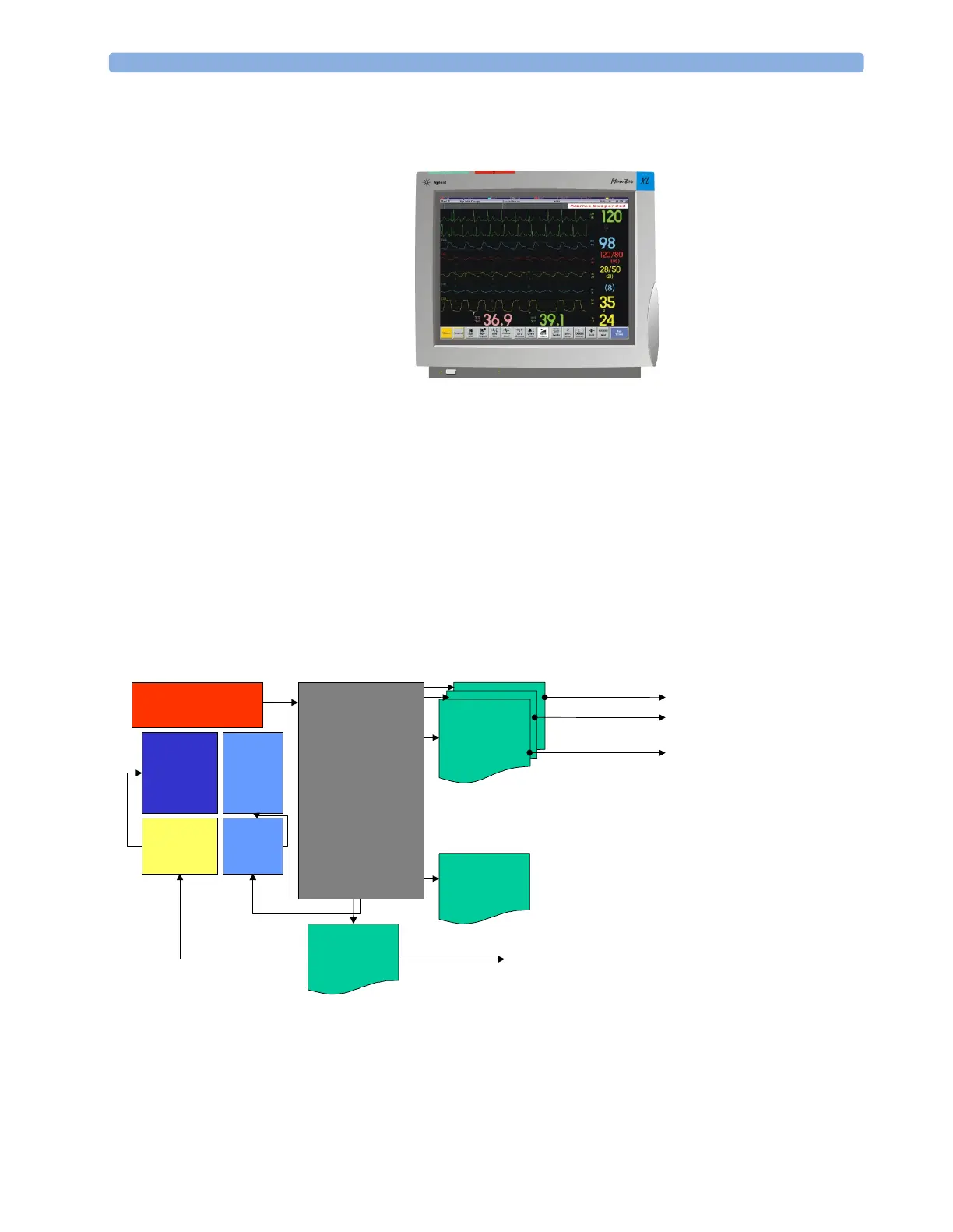

IntelliVue MP70
The MP70 monitor:
• integrates the display and processing unit into a single package,
• uses a 15” TFT XGA Color display
• uses the Philips Touchscreen as primary input device, whereas the Philips SpeedPoint and computer
devices such as mice, trackball, and keyboard can be added optionally
• has an optional recorder
• supports the Flexible Module Server (FMS)
Building Blocks:
I/F
Boards
Main Board
Power Supply
LCD
Adapter
LCD
Assembly
MSL
I/F
Video I/F
Board
To Ext. Display
MIB To AGM
PS/2 To External input devices
|| I/F To Local Printer
Touch
Panel
Touch
Controller
To Next Page
