5 Repair and Disassembly Plug-in Modules
112
2

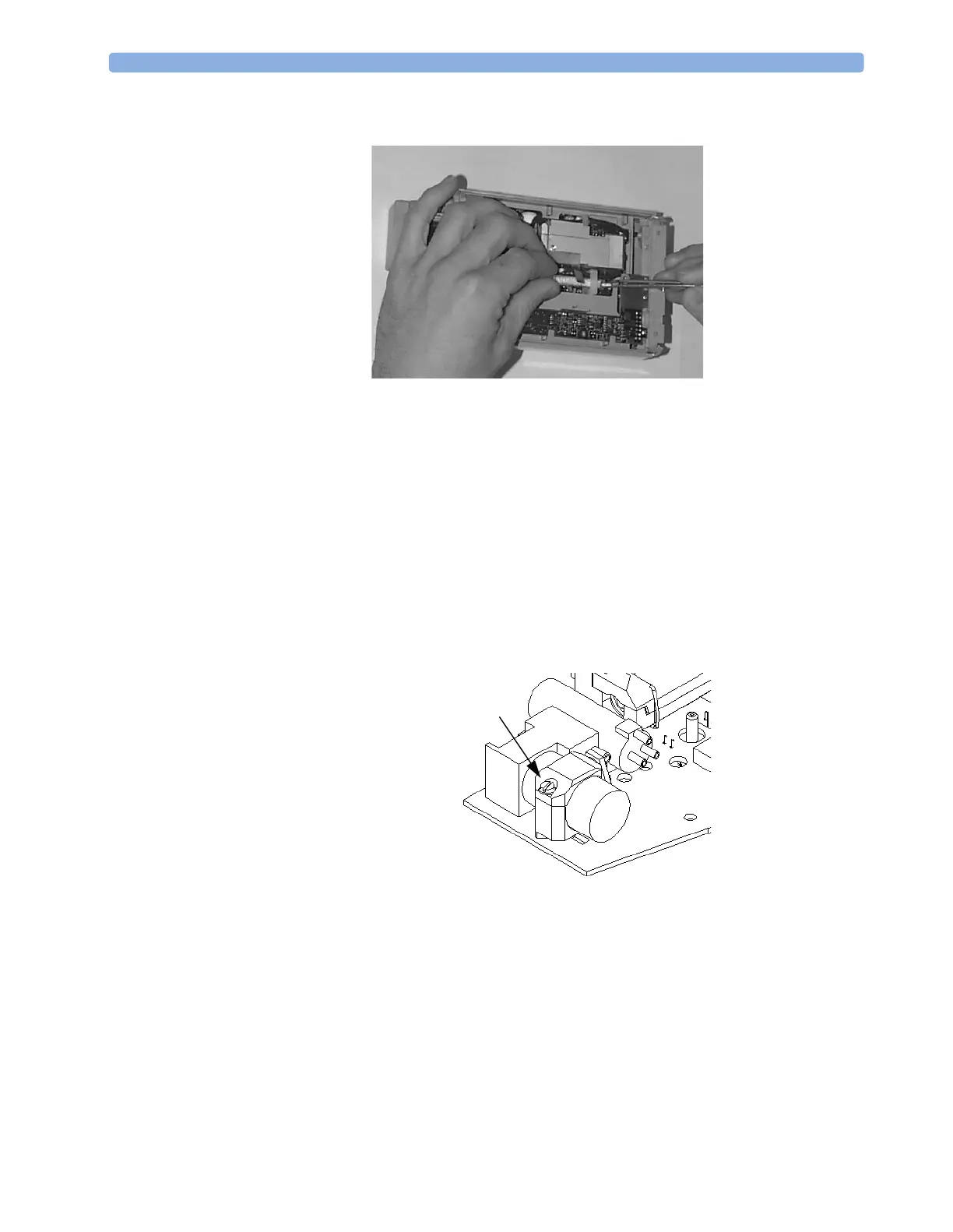

Being careful not to touch anything else in the Extension, use tweezers to pull the body of the CO
2
Scrubber out of the bracket.
3 Holding the body of the CO
2
Scrubber with your fingers, carefully disconnect the Extension
intake tube from the scrubber end and remove the CO
2
Scrubber from the Extension.
4 Dispose of the CO
2
Scrubber according to local legal requirements for low volume chemical waste.
NOTE Now that it is exposed, do NOT allow anything to fall into the Infrared Lamp assembly.
Removing the Pump
To remove the Pump, do the following:
1 Locate the Pump in the Extension.
2 Being careful not to touch anything else in the Extension, unscrew the screw holding the pump
bracket in position. Lift the top part of the bracket away and lift out the pump.
3 Gently disconnect the flow tubing attached to the Extension from the Pump.
NOTE Be sure to note which tube attaches to the inlet and which tube attaches to the outlet.
4 Gently disconnect the power lead which attaches the Pump to the Extension.
5 Remove the Pump.
Screw holding
pump bracket
To Next Page
