5 Repair and Disassembly Plug-in Modules
110
WARNING There is high voltage inside the Instrument (800V). Do not connect the Measurement Server
Extension to a Monitor while the Extension housing is open.
As well, parts inside the Instrument may be contaminated with bacteria. Protect yourself from possible
infection by wearing examination gloves during these procedures.
Removing the Front Cover
To remove the front cover, do the following:
1 Remove the server and the monitor from the extension.

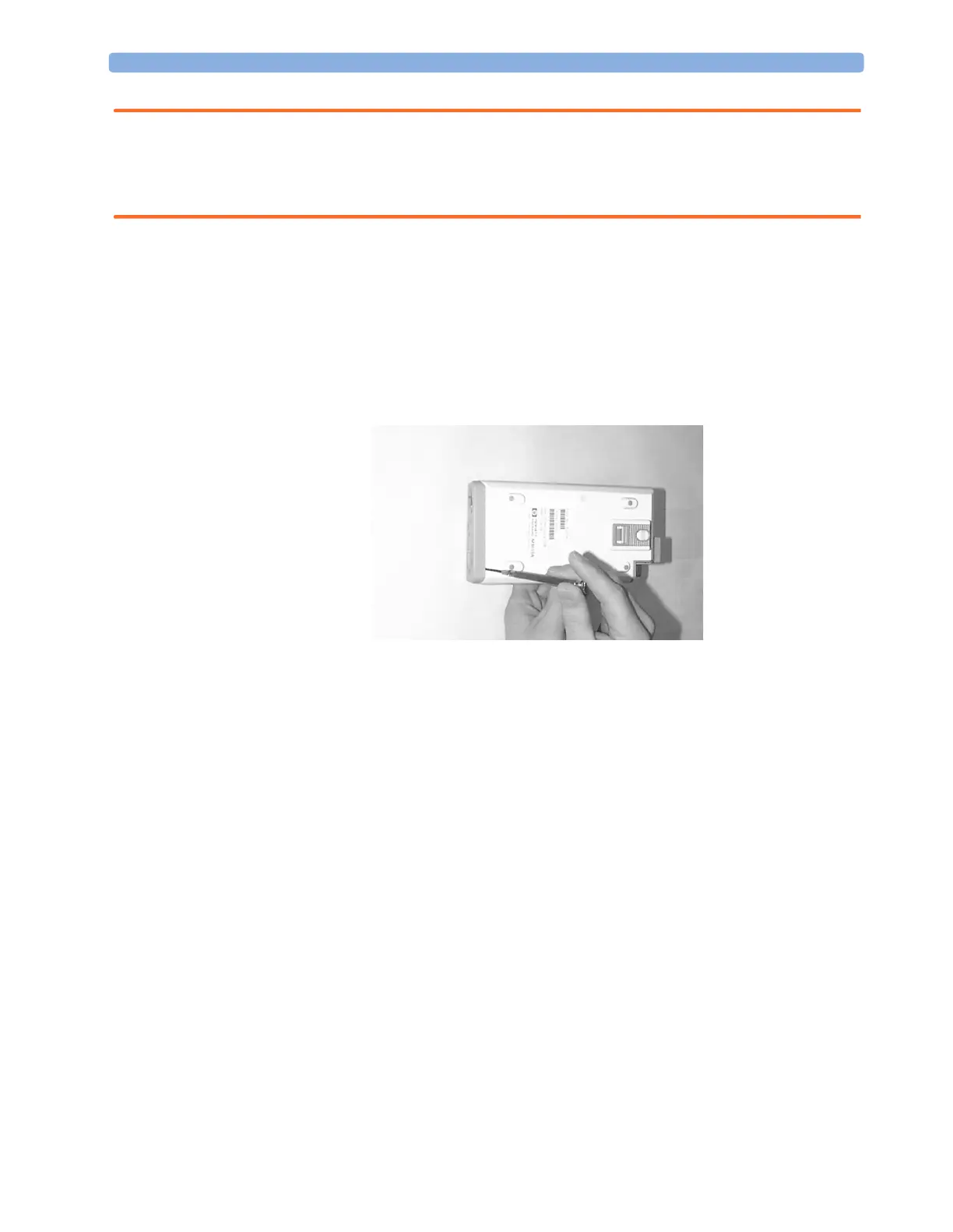

2 Use a thin-bladed screwdriver to prise the grey front cover (the console covering the measurement
connector hardware) gently from the bottom of the extension. Position the screwdriver in the small
slits provided for this purpose. The front cover then clicks away from the extension.
3 Remove the front cover.
Removing the Extension Bottom Cover
To remove the Extension bottom cover, do the following:
1 Position the extension on the dual link bar with the measurement connector hardware facing
upwards and the arm of the dual link bar towards you. There are four long mounting pins
threaded into the extension in each of the four corners under the cover. Locate the heads of the two
long mounting pins on the side away from you
2 Use tweezers to prise the pins gently out enough to be removed by hand.
3 Remove the two pins and set them aside for refitting.
NOTE Do not lose these long mounting pins since the Extension will not function unless they are in place..
4 Using your hands, gently pry the bottom cover away from the Extension at the link bar end first.
The bottom cover is press-latched at the link bar end. Remove it gently making sure not to bang or
touch the inside of the Extension.
