Plug-in Modules 5 Repair and Disassembly
109
Recorder Module Paper
The recorder will not run when the door is open or when the recorder is out of paper. To prevent
damage to the recorder module, use only Philips approved paper (Philips re-order number 40477A/B)

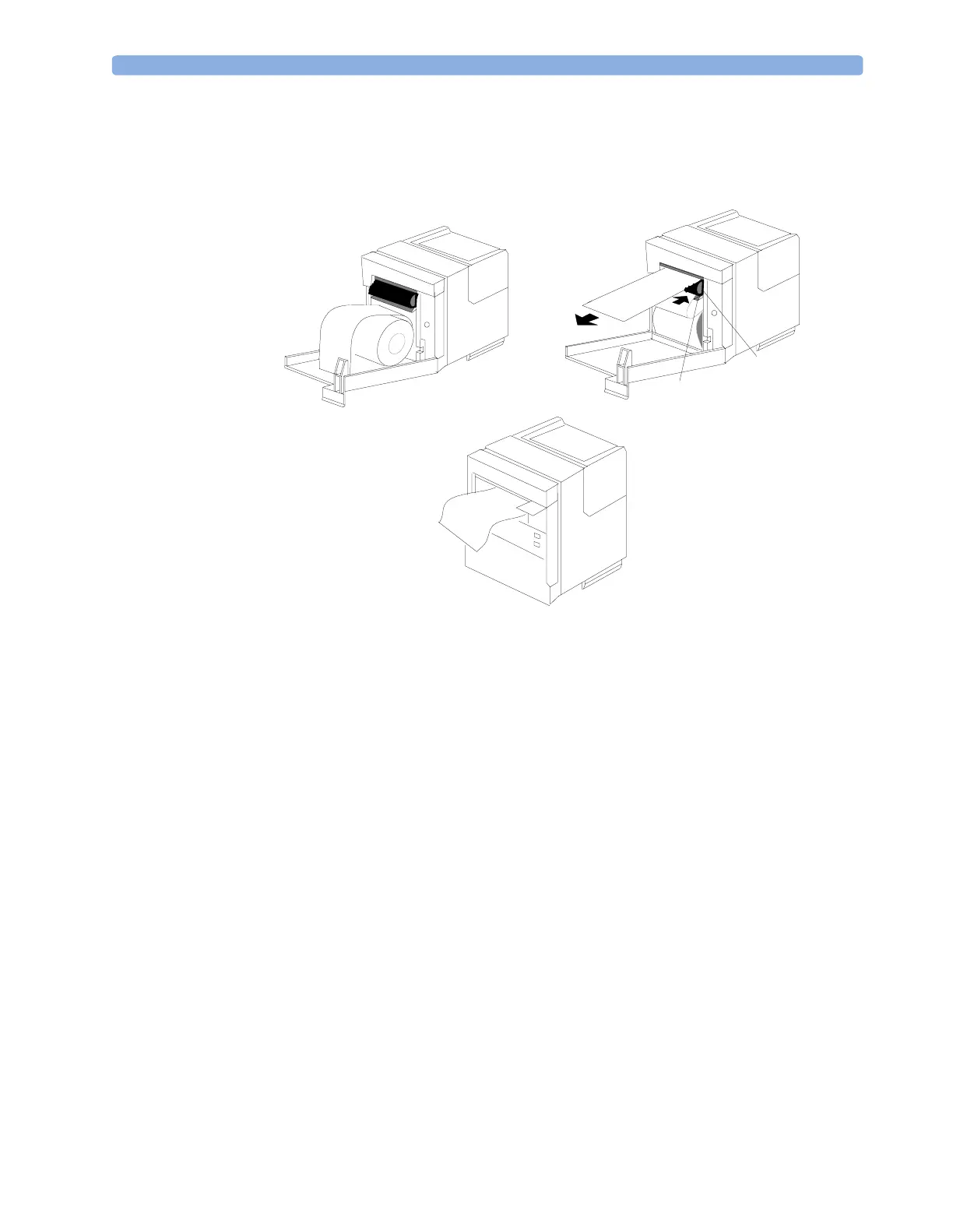

To load paper into the recorder module:
1 Remove the empty core from the previous roll of paper.
2 Cut off and discard the first few inches of paper to eliminate any traces of adhesive.
3 Pull out several inches of paper from the new roll, holding the roll with the loose end hanging over
the top toward you.
4 Open the door and push the paper roll into the holders in the recorder.
5 Thread the paper under the roller and over the plastic shelf far enough so it goes around the roller
and comes out above it.
6 Drape the paper over the end of the door and close the door. The paper should be visible and
draped down in front of the door.
Disassembly Procedures for the Measurement Server Extension
It is recommended that you replace all the replaceable parts in the Extension (CO
2
Scrubber and
Pump) after 15 000 hours (approximately 3 years) of continuous use.
Tools Required:
• A thin-bladed screwdriver.
• A pair of large tweezers.
• In addition, for removing the pump, you will need a large-bladed screwdriver.
5
STEP
PLASTIC
SHELF
PAPER
ROLLER
3
STEP
6
STEP
