9 Anesthetic Gas Module Repairing the Anesthetic Gas Module
260

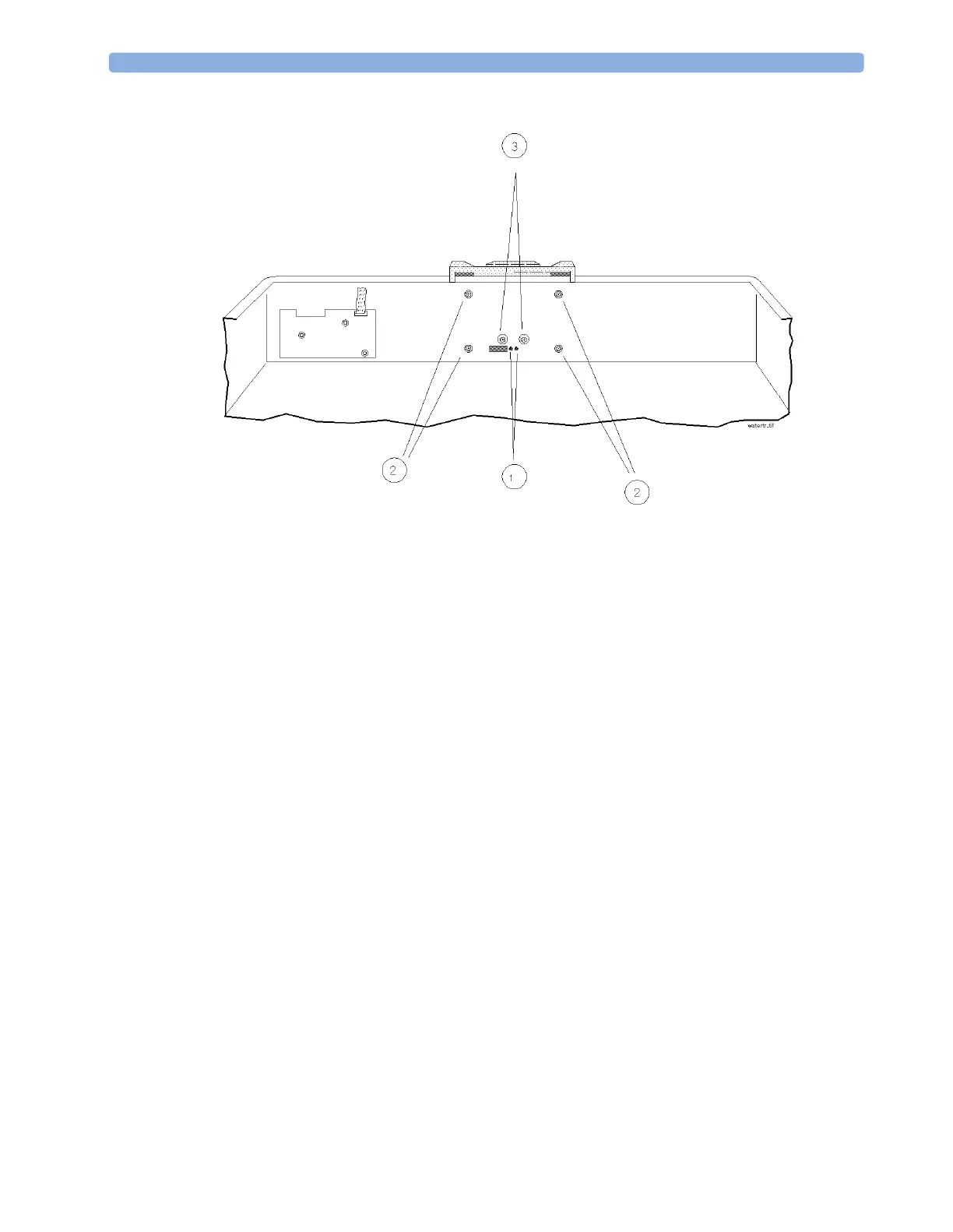

Figure 81 Removing the Watertrap Manifold and Protector
Power Fuses
Removal
To remove the power fuses (refer to Figure 82):
1 Using a flat-tipped screwdriver, unscrew the fuse counter-clockwise (1).
2 Pull the fuse cap and fuse clear of the display.
3 Pull the fuse out of the fuse cap and note the fuse rating.
4 Repeat the steps for the other fuse.
Replacement
To replace the power fuses (refer to Figure 82):
1 Put one end of the fuse into the fuse cap.
2 Put the fuse and fuse cap into the receptacle in the rear of the display.
3 Using a flat-tipped screwdriver, screw the fuse clockwise into the receptacle.
