Philips IntelliVue MP70 Service Manual

Flexible Module Server (FMS) Disassembly 5 Repair and Disassembly
105

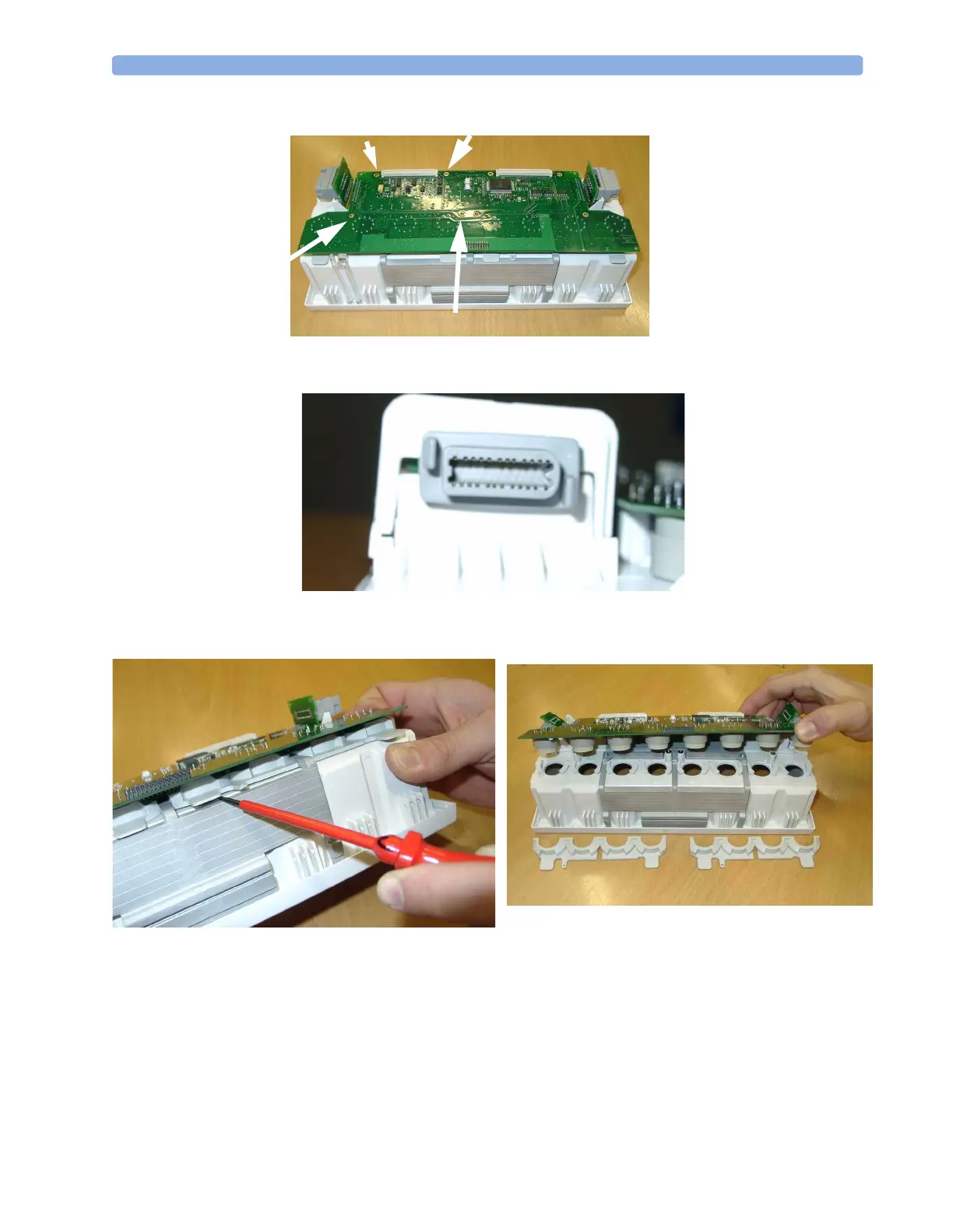

7
Remove the four remaining screws on the mainboard.
8 Pull off side connector brackets by pulling them gently away from the housing on each side and
lifting carefully.
9 Lift up and pull on the tabs to remove the connector holders.
Reassembly Note: The connector holders are side specific.
