Philips IntelliVue MP70 Service Manual

9 Anesthetic Gas Module Troubleshooting the Anesthetic Gas Module
226

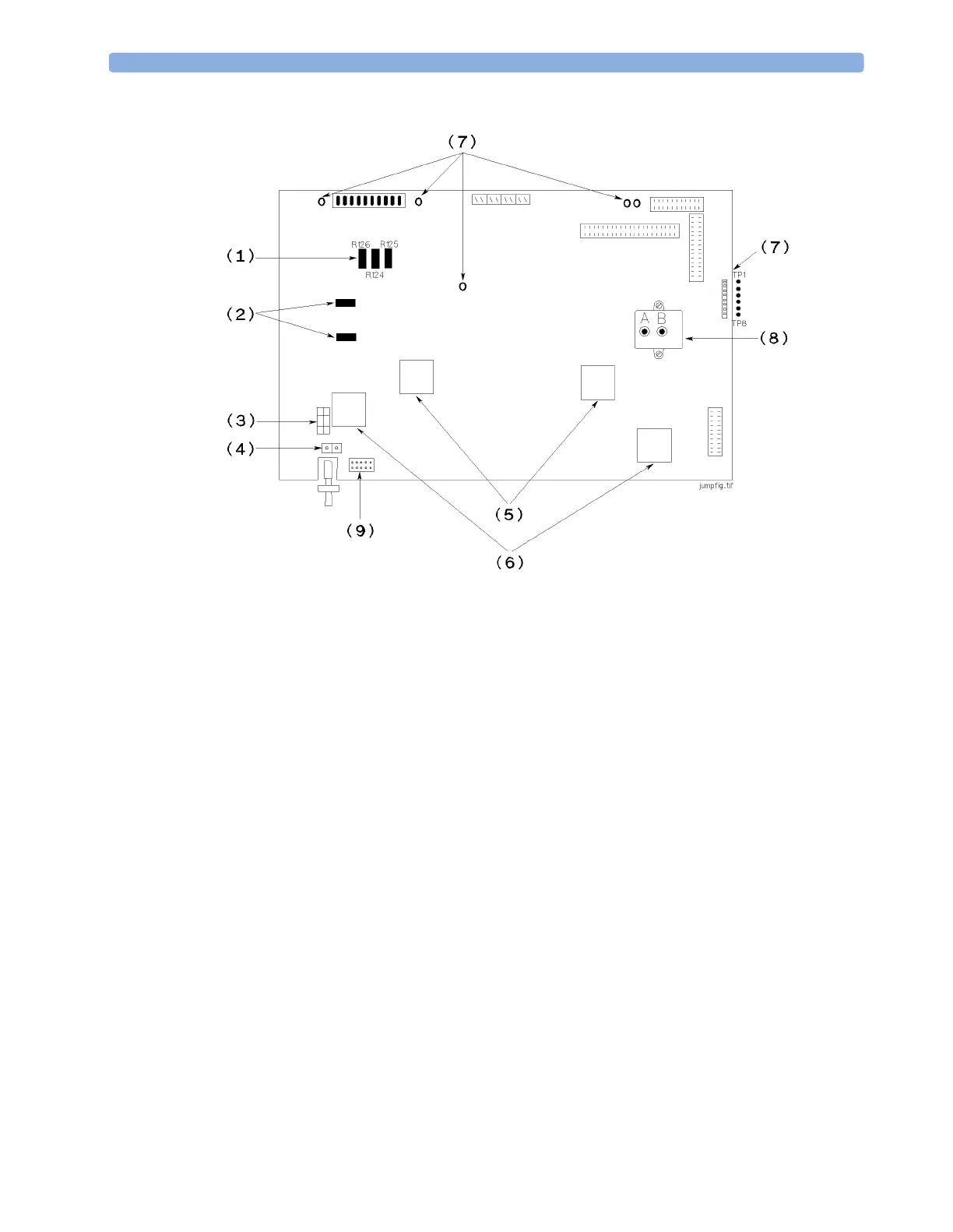

Figure 51 Potentiometers, Jumpers, and Test Points
Legend:
Main EPROM
Agt-ID EPROM
U11
1 Flowrate potentiometers (R125, Purge flow and R126, Normal flow)
2 IR Source potentiometers (R178, R180)
3O
2
jumper (10IRQ)
4 Top cover jumper (JP7)
5EPROMs
6 Microprocessors
7Test pins
8Flow transducer
9 Top-cover PC board connector / NVRAM transfer
