Tracker+ has 8 voices which would represent each of the tracks playback.
The common processing of the voices comes together at the master stage
where the voices are mixed and the master effects applied. Also the Delay
and Reverb ‘send’ audio is mixed into the main out.

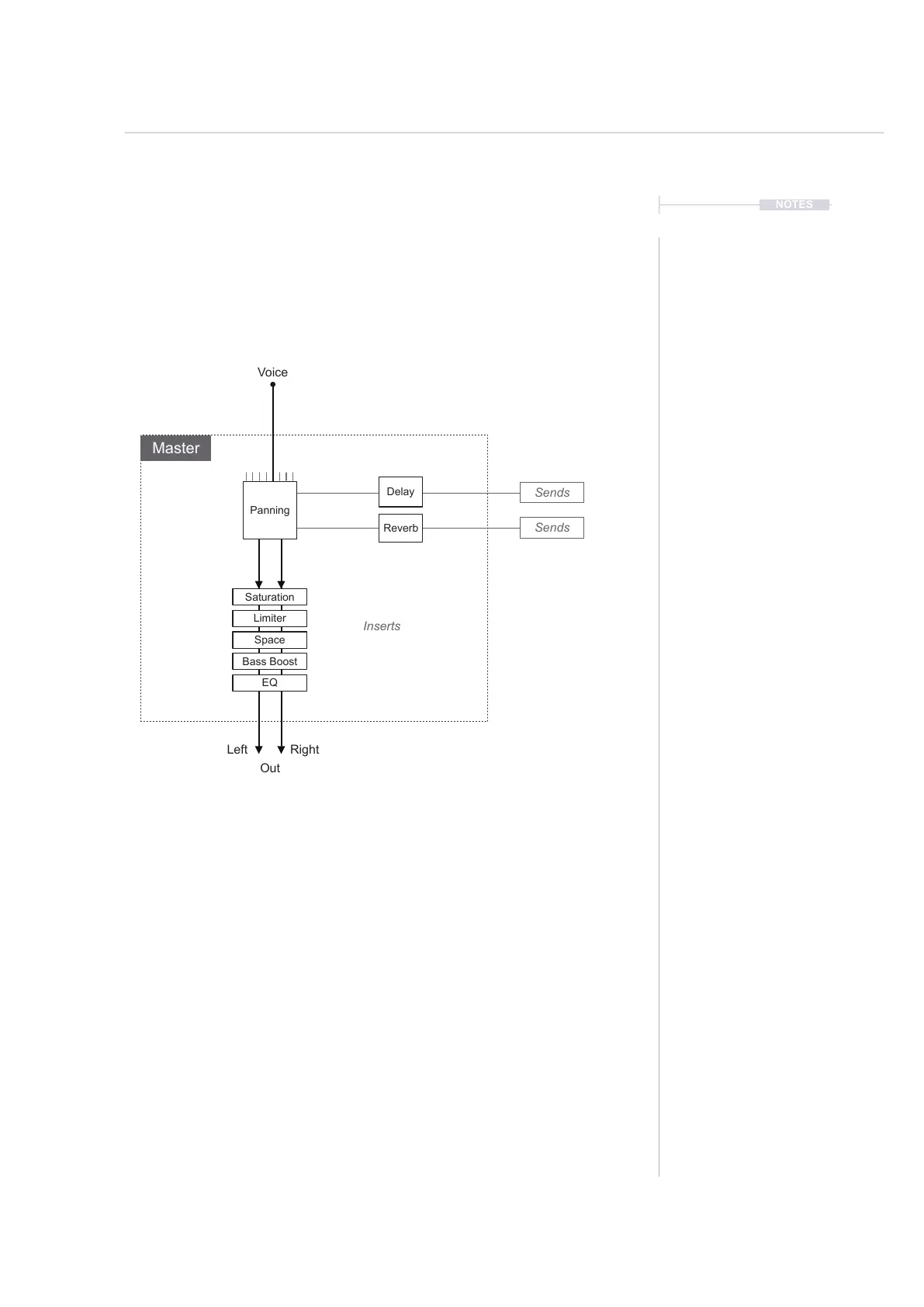

The diagram shown is for illustration purposes and does not constitute an
exact or ofcial schematic of Polyend’s Tracker+ circuitry. It does however
serve to give an insight into the signal path and identify the six master
effects covered in this section.
The reverb and delay send effects can be sent pre-fader or post-fader in the
global mixer. This is set in the ‘Cong’ settings. This means the effect is sent
before the volume fader or after the volume fader adjustment.
Saturation
Limiter
Space
Bass Boost
EQ
Sends
Inserts
Sends
Out
Voice
Left Right
Master
Delay
Reverb
Panning
