Appendix D Calibration (Using Generator Service Tools)
Revision W HF Series X-ray Generators - Service Manual
D-62 Quantum Medical Imaging, LLC
Copy Receptor Calibration Tab
Typically, the AEC calibration parameters for each of the various Receptors/
Film Screens used with the generator are quite similar. Therefore, the "Copy"
function (shown below) can be used to copy calibration parameters from one
Receptor/Film Screen to another. For example, after completing AEC calibra-
tion of "Wall72" Receptor/Film Screen, the Copy Receptor Calibration function
can be used to copy its AEC calibration data to the "Table" receptor.

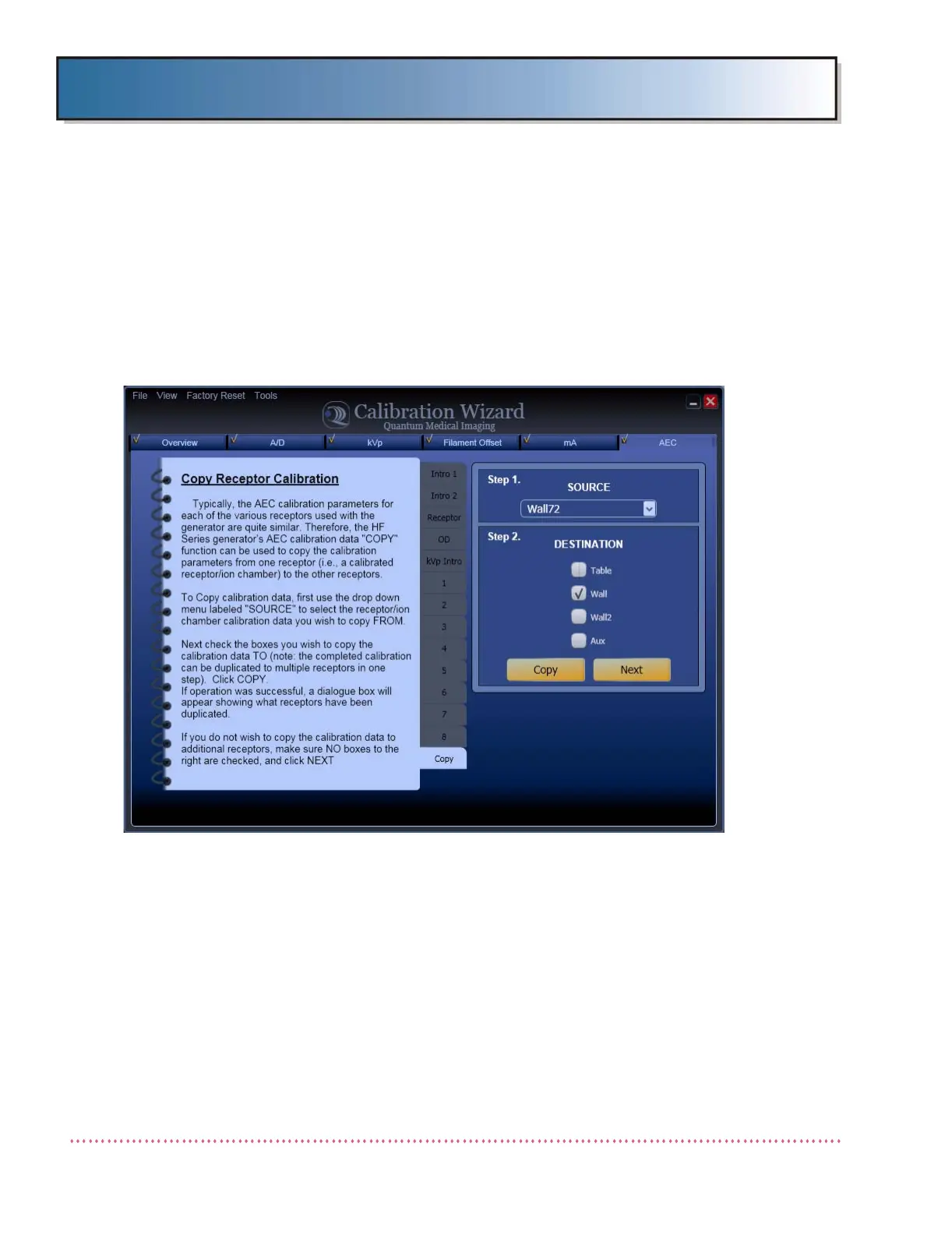

Figure D-34. Calibration Wizard - Copy Receptor Calibration
After copying the "Wall72" AEC Calibration data to "Wall", the only further
AEC calibration usually required is performing Base OD Calibration to set the
"Offset" value. Similarly, the "Wall" Receptor/Film Screen calibration data can
be copied to the "Table", however, the table ion chamber’s MASTER GAIN
potentiometer must be adjusted as required. Be sure to verify the AEC
images for each SID/receptor meet applicable regulatory agency require-
ments. If required, further optical density accuracy can be attained by per-
forming the "AEC kVp Calibration" procedure for each copied receptor.
Proceed as follows:
