Chapter 7: Re-Assembly ABL77 Service Manual

Valve Boards – General Information, Continued

Valve board

with J10

connector

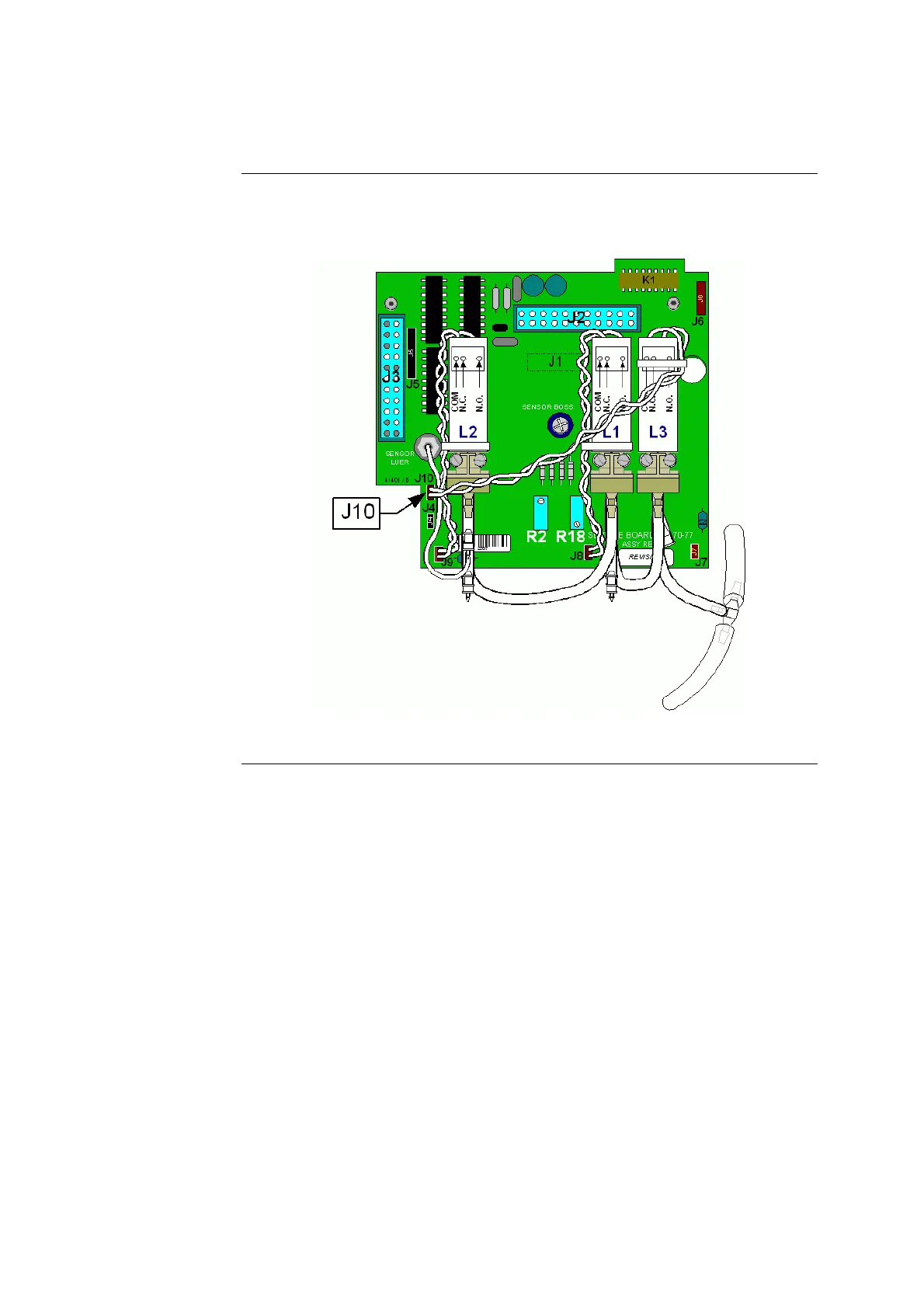

Valve boards built after the release of the check valve fluidics system have an extra

connector (J10) to make a direct connection for valve L3 (902-790) as shown in

Figure 7-8.

Figure 7-8

Continued on next page

7-18 Rev. F
