DUPLEX UNIT
B291/B295/B296/B297 3-4 SM
3.4 DUPLEX UNIT

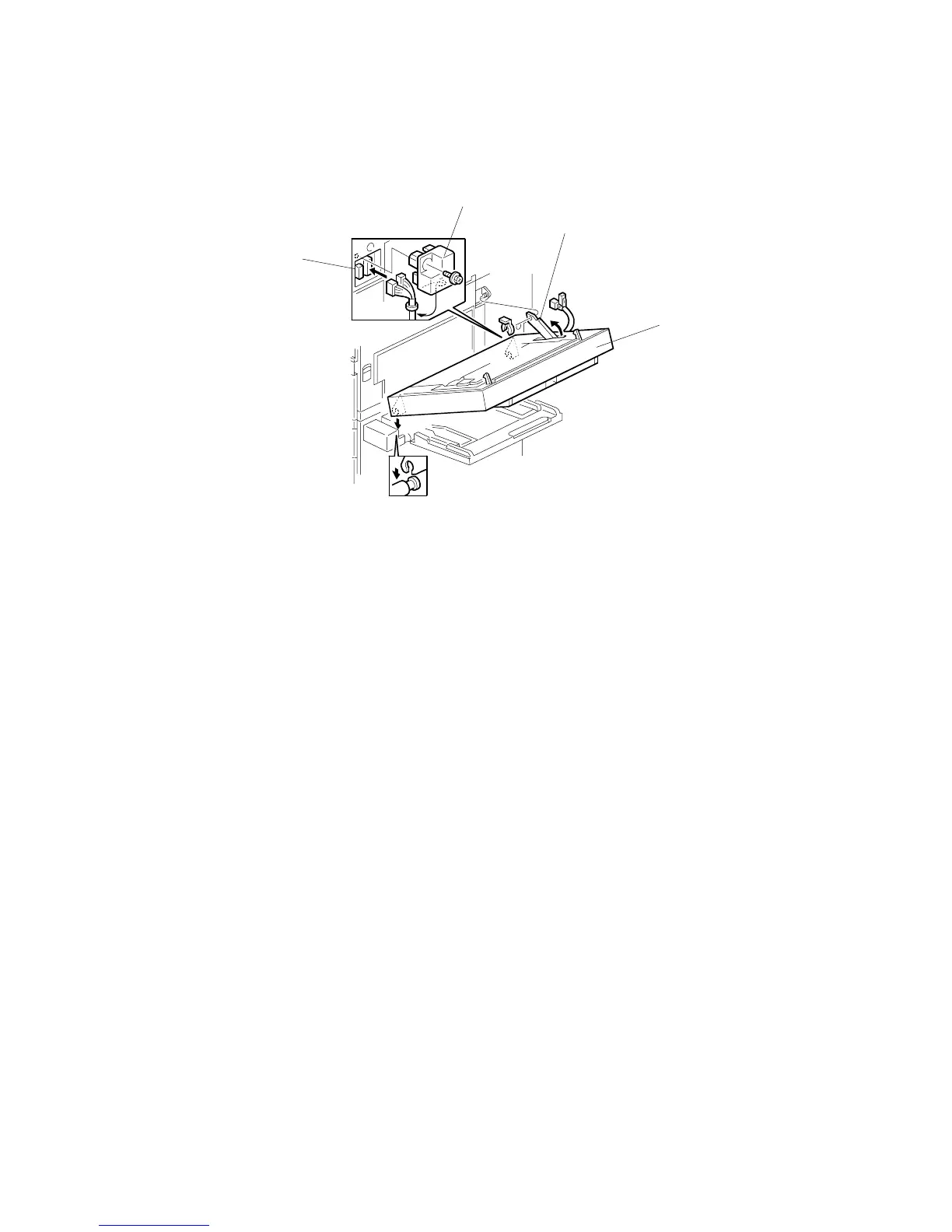

1. Connector cover [A] (! x1)
2. Duplex connectors [B] (" x2)
3. Duplex support arm [C] (# x1)
4. Duplex unit [D]
NOTE: Grip the duplex unit with both hands, slowly rotate it towards you and
then lift up.
B195R903.WMF
[A]
[B]
[C]
[D]
