PHOTOCONDUCTOR UNIT (PCU)
SM 6-53 B291/B295/B296/B297
Detailed
Descriptions
6.7 PHOTOCONDUCTOR UNIT (PCU)
6.7.1 OVERVIEW

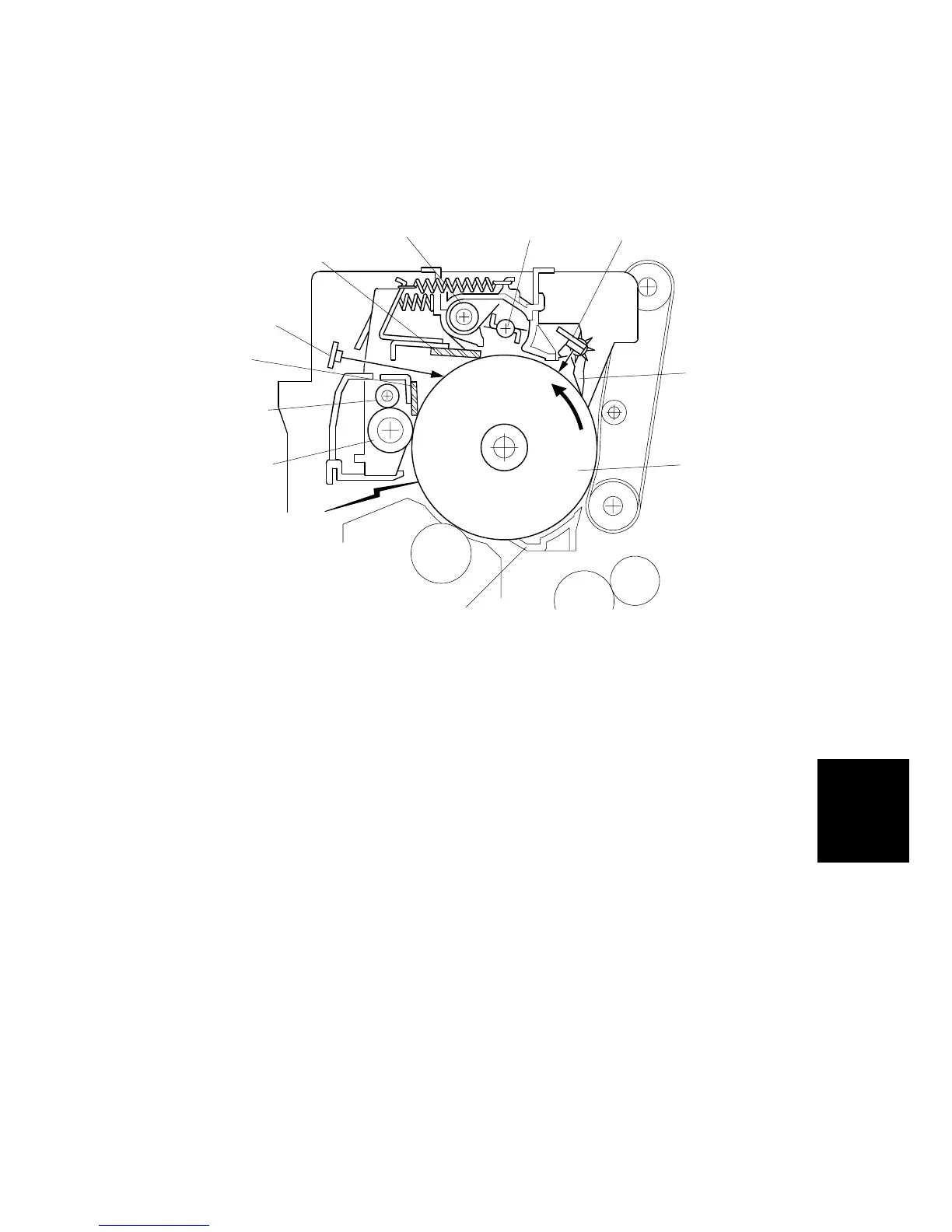

1. Toner Collection Coil
2. Toner Collection Plate
3. Image Density Sensor
4. Pick off Pawl
5. OPC Drum (φ60 mm)
6. Transfer Entrance Guide
7. Charge Roller
8. Charge Roller Cleaning Roller
9. Drum Cleaning Blade 2
10. Quenching Lamp
11. Drum Cleaning Blade 1
