Ricoh B291 - Fusing;Exit Motor

DRIVE AREA
SM 3-79 B291/B295/B296/B297
Replacement
Adjustment

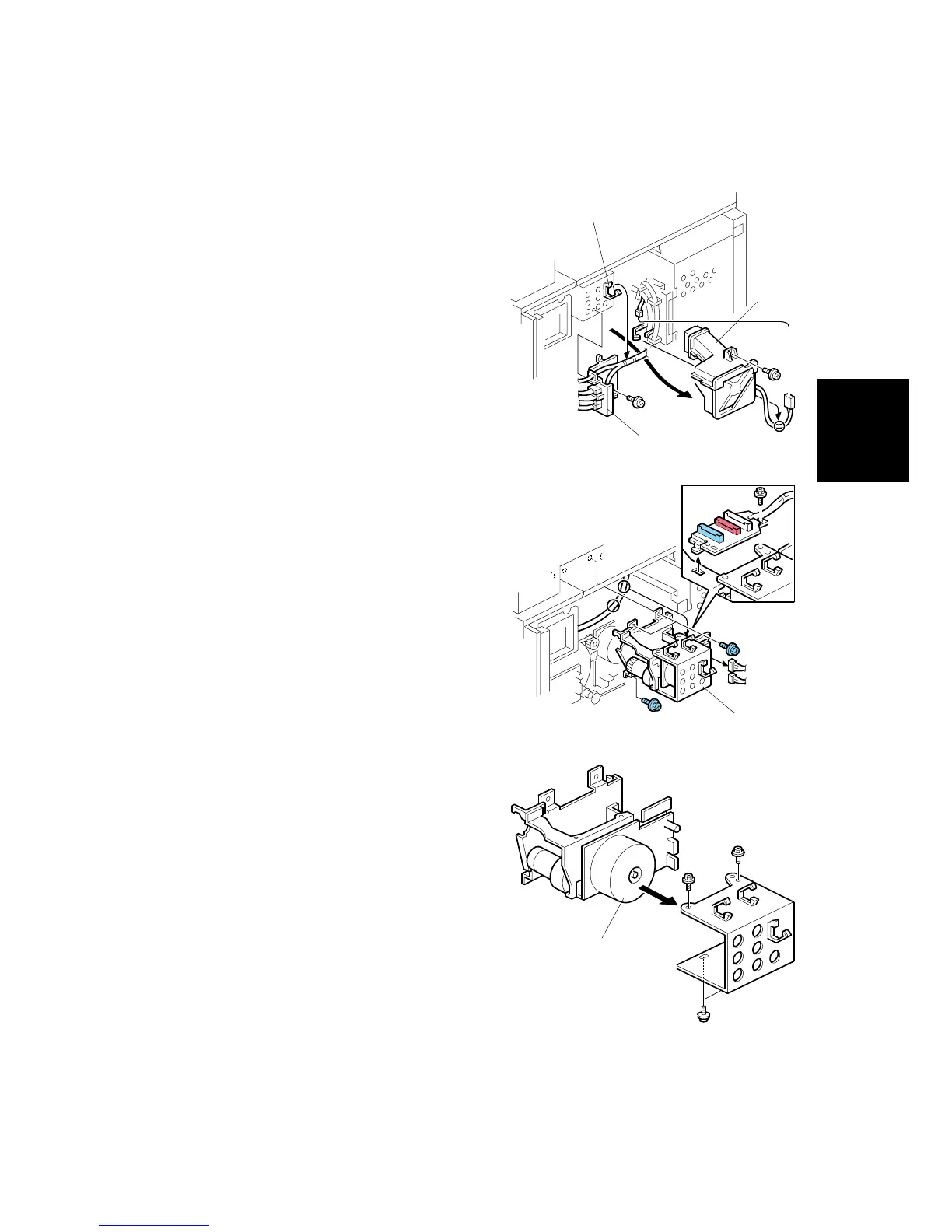

3.18.3 FUSING/EXIT MOTOR
• Rear upper cover (!3.7.1)
• Fusing unit cover (!3.15.3) (Do not
disconnect.)
• Paper output tray
[A]: Harness clamps (%x3)
[B]: Connector bracket (! x1, % x1)
[C]: Main fan (! x1, "x1)
[D]: Motor bracket (! x4, " x2)
[E]: Fusing exit motor (! x4)
B195R925.WMF
B195R926.WMF
B195R927.WMF
[A]
[B]
[C]
[D]
[E]
