EXIT SENSOR
SM 9 B714
Auto Reverse
Document
Feeder B714

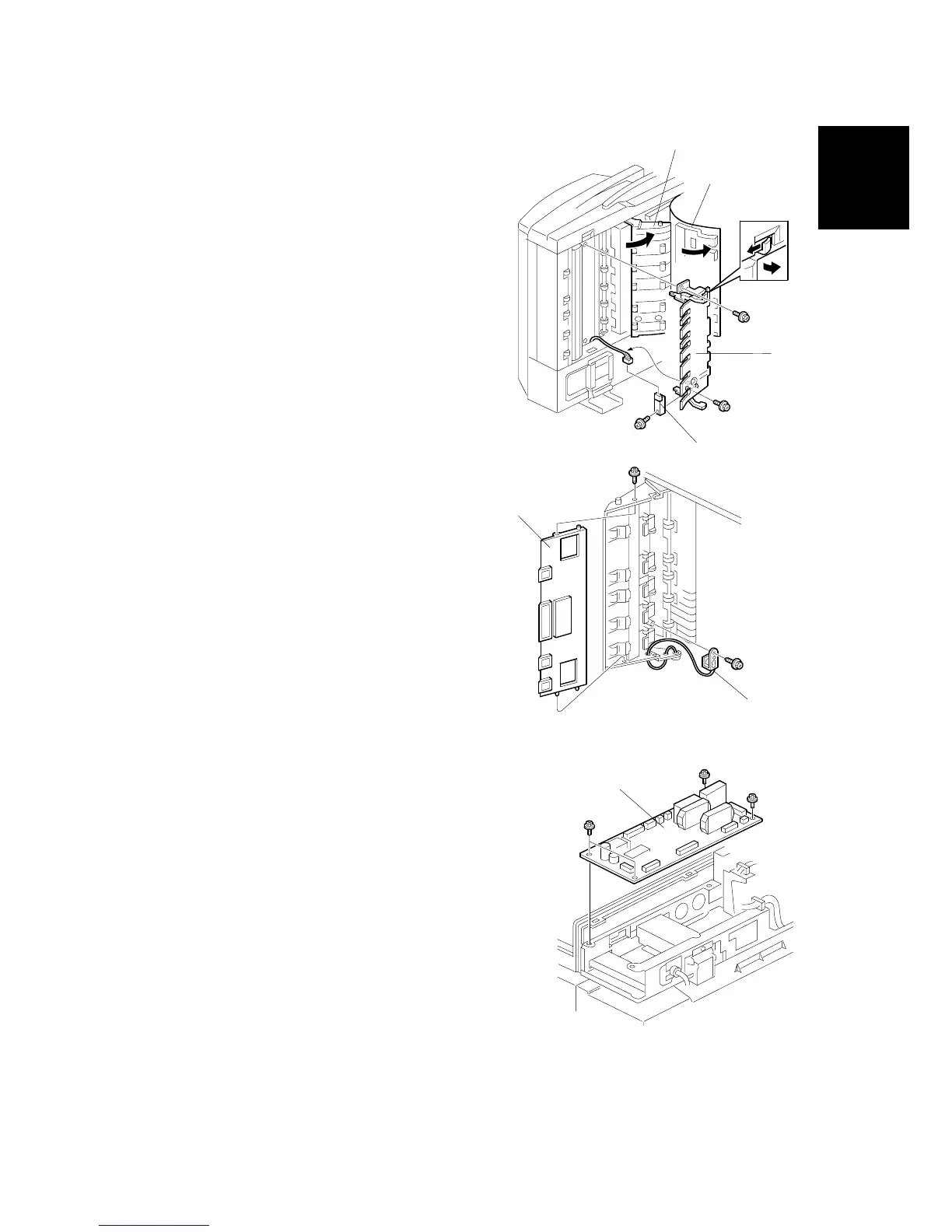

1.12 EXIT SENSOR
Open the ARDF.
[A]: Pull the platen sheet off halfway.
[B]: Open the exit guide plate.
[C]: Exit guide plate cover (! x 2)
[D]: Exit sensor (! x 1, " x 1)
1.13 STAMP SOLENOID
Rear cover (! 1.1)
Open exit guide plate (! 1.12)
[A]: Exit guide plate cover (! x 1)
[B]: Stamp solenoid (! x 1, " x 1)
1.14 CONTROLLER BOARD
Rear cover (! 1.1)
[A]: Controller board (! x 4, all ")
B597R116.WMF
B597R201.WMF
B597R202.WMF
[A]
[B]
[C]
[D]
[A]
[A]
[B]
