Ricoh B291 - Scanner Motor

SCANNER UNIT
B291/B295/B296/B297 3-16 SM

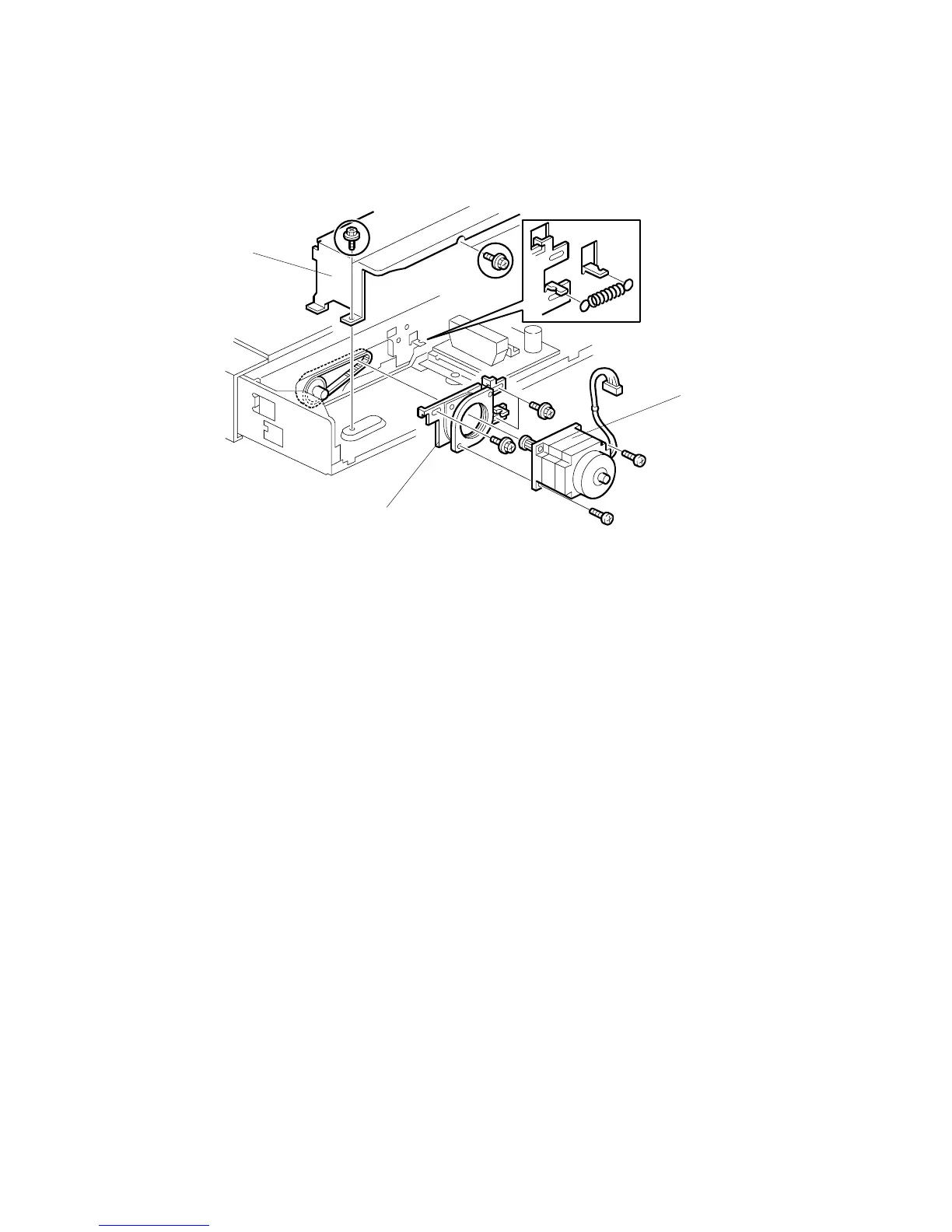

3.9.8 SCANNER MOTOR
1. ARDF (! 3.9.1)
2. Scanner rear cover (!3.9.3)
3. Rear bracket [A] (! x5, " x2)
4. Scanner motor bracket [B] (! x3, " x1, spring x1, timing belt x1)
NOTE: Loosen motor bracket [B] (! x3) to release tension on belt (motor
slides side to side).
5. Scanner motor [C] (! x2, " x1)
6. Perform scanner and printer copy adjustments (!3.21)
B195R914.WMF
[A]
[B]
[C]
