Ricoh B291 - Booklet Finisher Installation (B546); Accessory Check

BOOKLET FINISHER INSTALLATION (B546)
SM B291/B295/B296/B297
1-53
Installation
1.12 BOOKLET FINISHER INSTALLATION (B546)
1.12.1 ACCESSORY CHECK

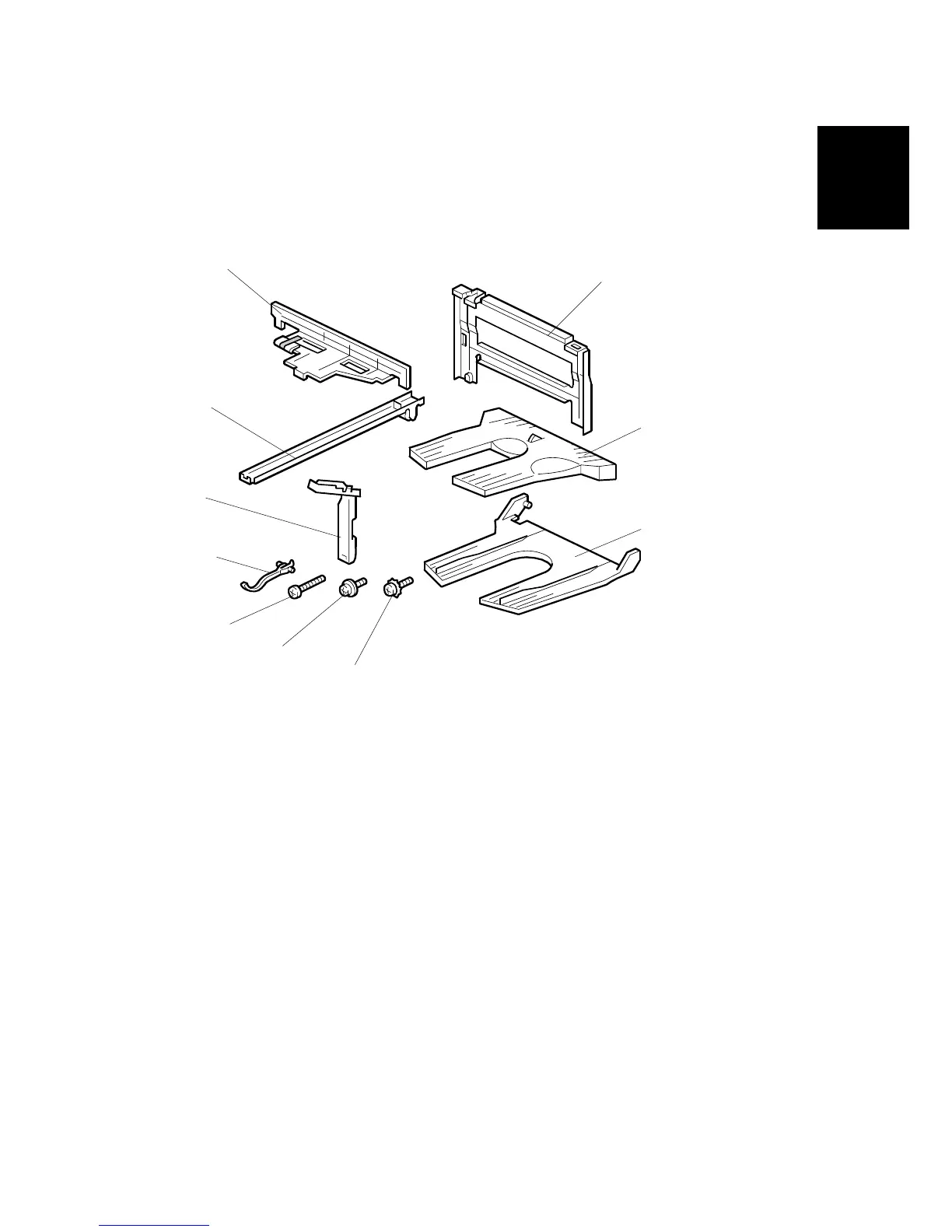

Check the quantity and condition of the accessories in the box against the following
list.
Description Q’ty
1. Upper Tray.......................................................................... 1
2. Shift Tray ............................................................................ 1
3. Tapping Screw - M4 x 6...................................................... 2
4. Rail Ass’y............................................................................ 1
5. Joint Bracket ....................................................................... 1
6. Tapping Screw - M4 x 16.................................................... 8
7. Rail Bracket ........................................................................ 1
8. Tapping Screw - M4 x 6...................................................... 1
9. Harness Cover.................................................................... 1
10. Sensor Feeler ................................................................... 1
B546I101.WMF
1
2
10
4
5
3
7
8
9
6
