SCANNER UNIT
B291/B295/B296/B297 3-14 SM
3.9.6 EXPOSURE LAMP
1. ARDF (! 3.9.1)
2. Exposure glass (!3.9.2)
3. Operation panel [A] (! x2, " x1)
4. Slide 1st scanner [B] to the cutout to expose connector and screw.
5. Exposure lamp [C] (! x1, " x1)
Important
• Never touch the glass surface of the exposure lamp with bare hands.
• Slide the exposure lamp toward the rear to disengage the tab on its base
from the hole below and then lift out.

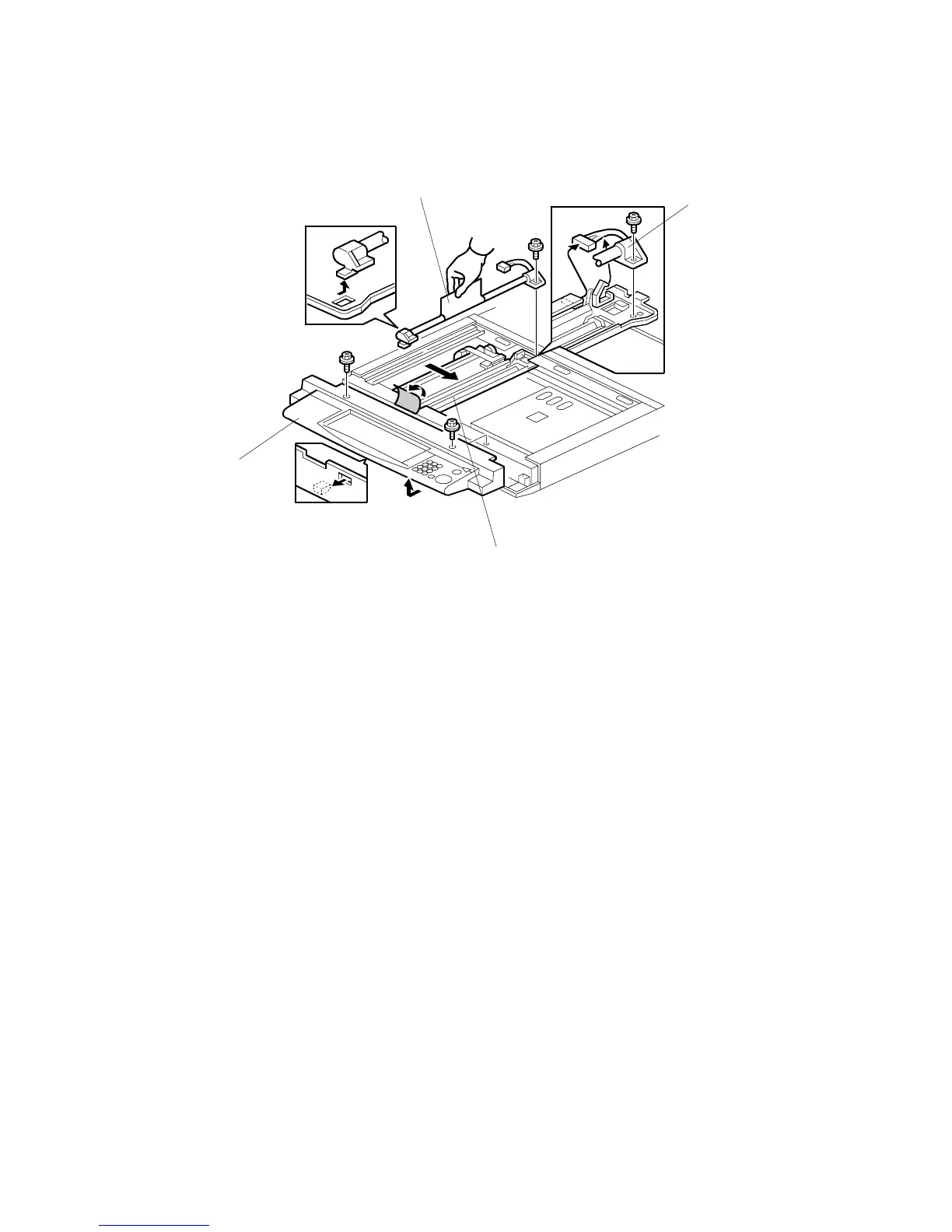

B195R912.WMF
