Ricoh B291 - Paper End;Paper Height;Relay Sensors

PAPER FEED
B291/B295/B296/B297 3-52 SM
3.14.6 PAPER END/PAPER HEIGHT/RELAY SENSORS
1. Remove the appropriate paper feed unit. (!3.14.4, 3.14.5)
2. Paper height sensor [A] (" x1)
3. Paper end sensor [B] (" x1).
4. Relay sensor bracket [C] (! x1, " x1)
5. Relay sensor [D] (" x1)

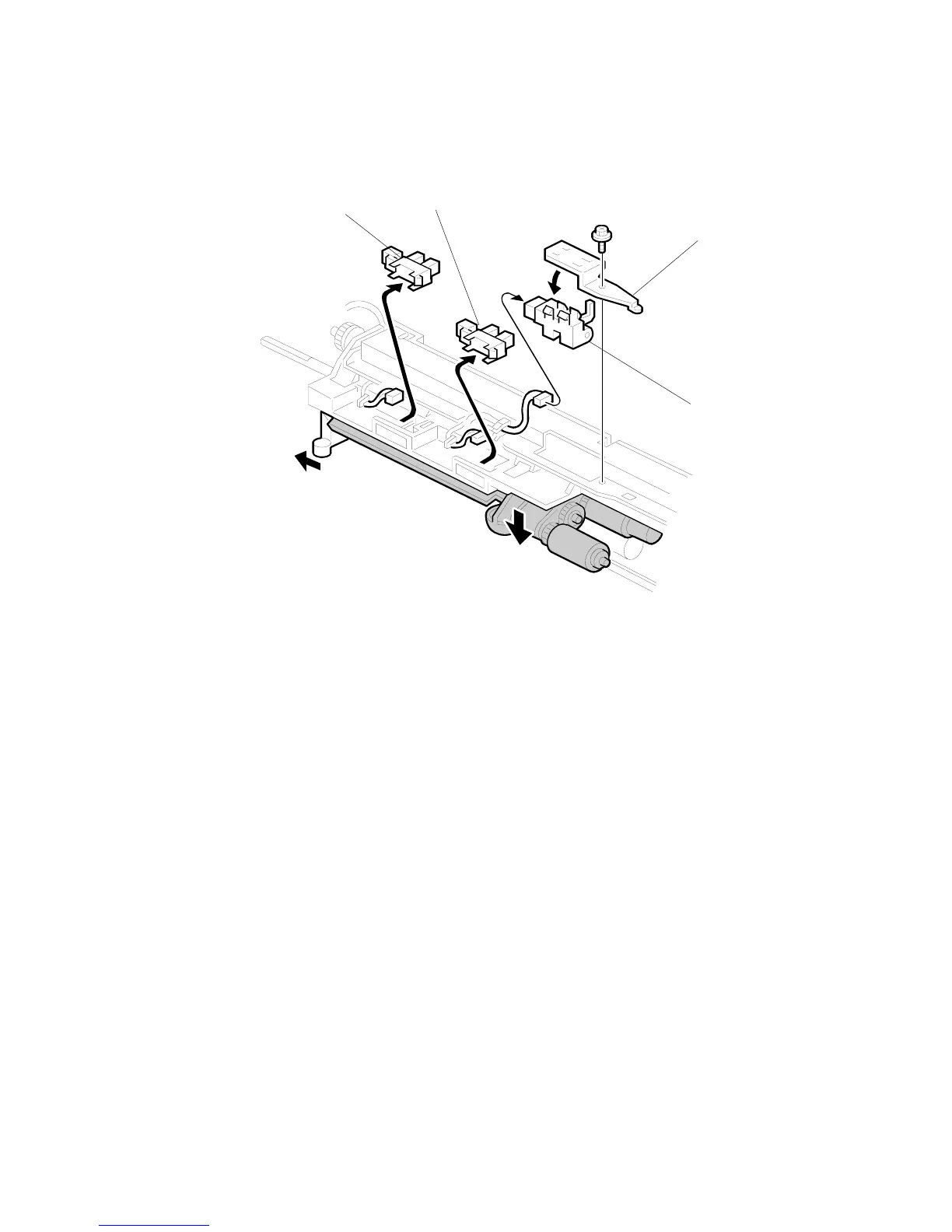

B195R963.WMF
[A]
[B]
[C]
[D]
