DRIVE AREA
SM 3-77 B291/B295/B296/B297
Replacement
Adjustment
3.18 DRIVE AREA
3.18.1 REGISTRATION CLUTCH, TRANSFER BELT CONTACT
CLUTCH

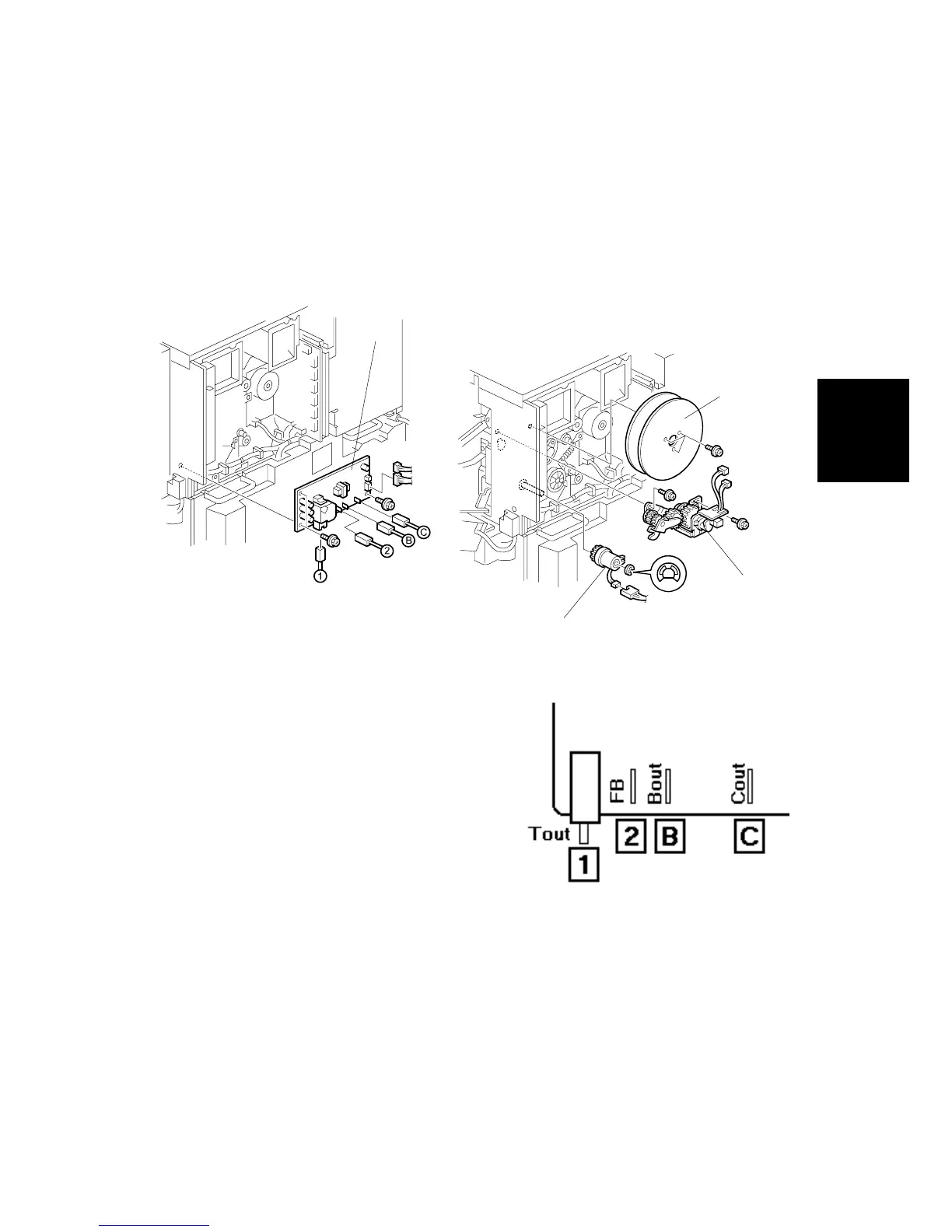

1. Rear upper cover (! x2) (!3.7.1)
2. High voltage supply board [A] ("
x6, ! x3)
NOTE: Make sure that you re-
connect the wires in the correct
order. They are labeled:
1 # 2 # B # C
3. Flywheels [B] (! x3)
4. Registration clutch [C] ($ x1, "
x1)
5. Transfer belt contact clutch [D] (" x2, ! x2)
B195R807.WMF
B195R808.WMF
B195R809.WMF
[A]
[C]
[D]
[B]
