Ricoh B291 - Transport Motor and Inverter Motor

TRANSPORT MOTOR AND INVERTER MOTOR
SM 7 B714
Auto Reverse
Document
Feeder B714

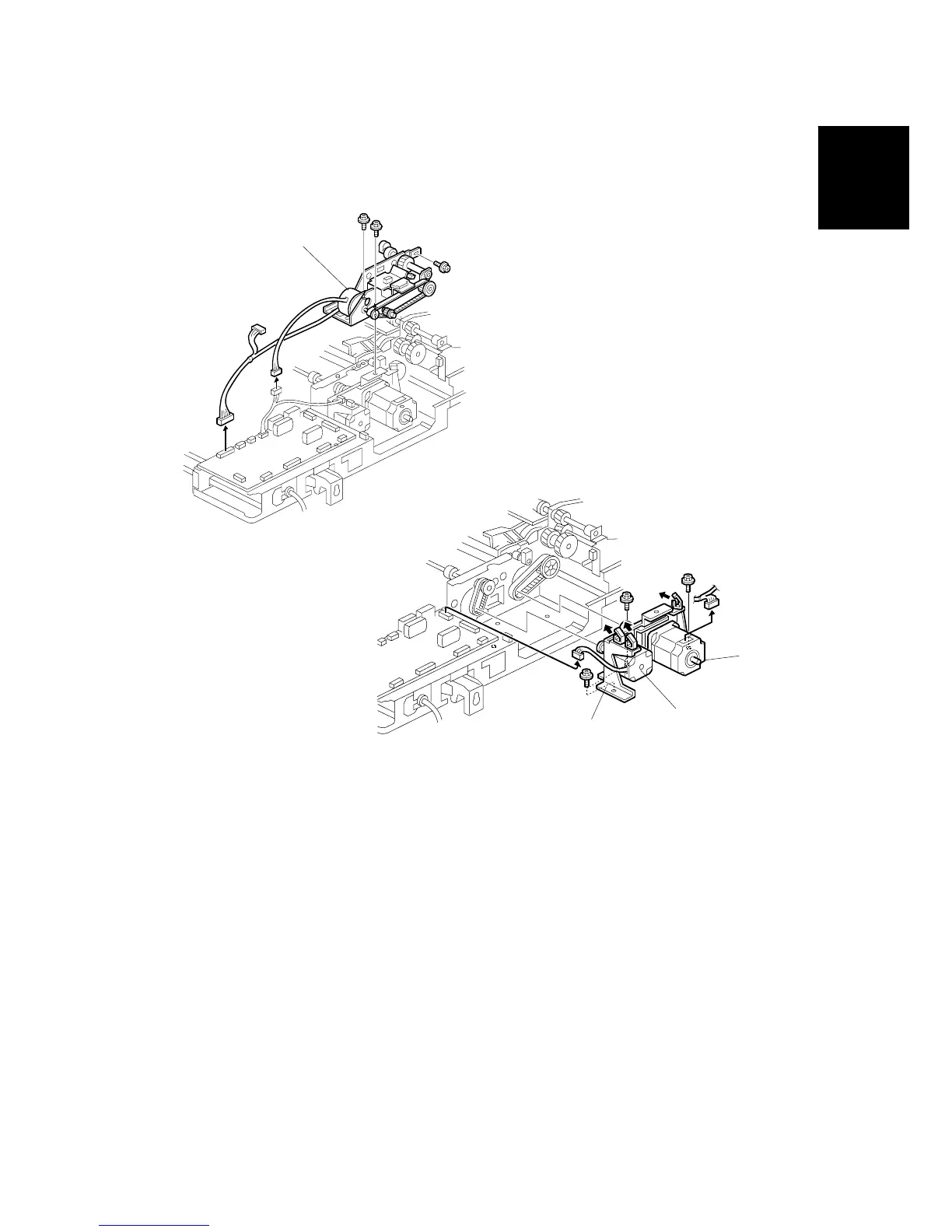

1.10 TRANSPORT MOTOR AND INVERTER MOTOR
Rear cover (! 1.1)
[A]: Pick-up roller assembly (# x 1, ! x 3, " x 3)
[B]: Motor bracket (! x 3, " x 2, Timing belt x 2)
[C]: Transport motor (! x 2, Spring x 1)
[D]: Inverter motor (! x 2)
B597R113.WMF
B597R112.WMF
[A]
[B]
[C]
[D]
