TRANSFER UNIT
B291/B295/B296/B297 3-44 SM
3.13 TRANSFER UNIT
3.13.1 TRANSFER BELT UNIT
NOTE: To avoid exposing the PCU drum to strong light, cover it with paper if the
right cover will be open for a long period.

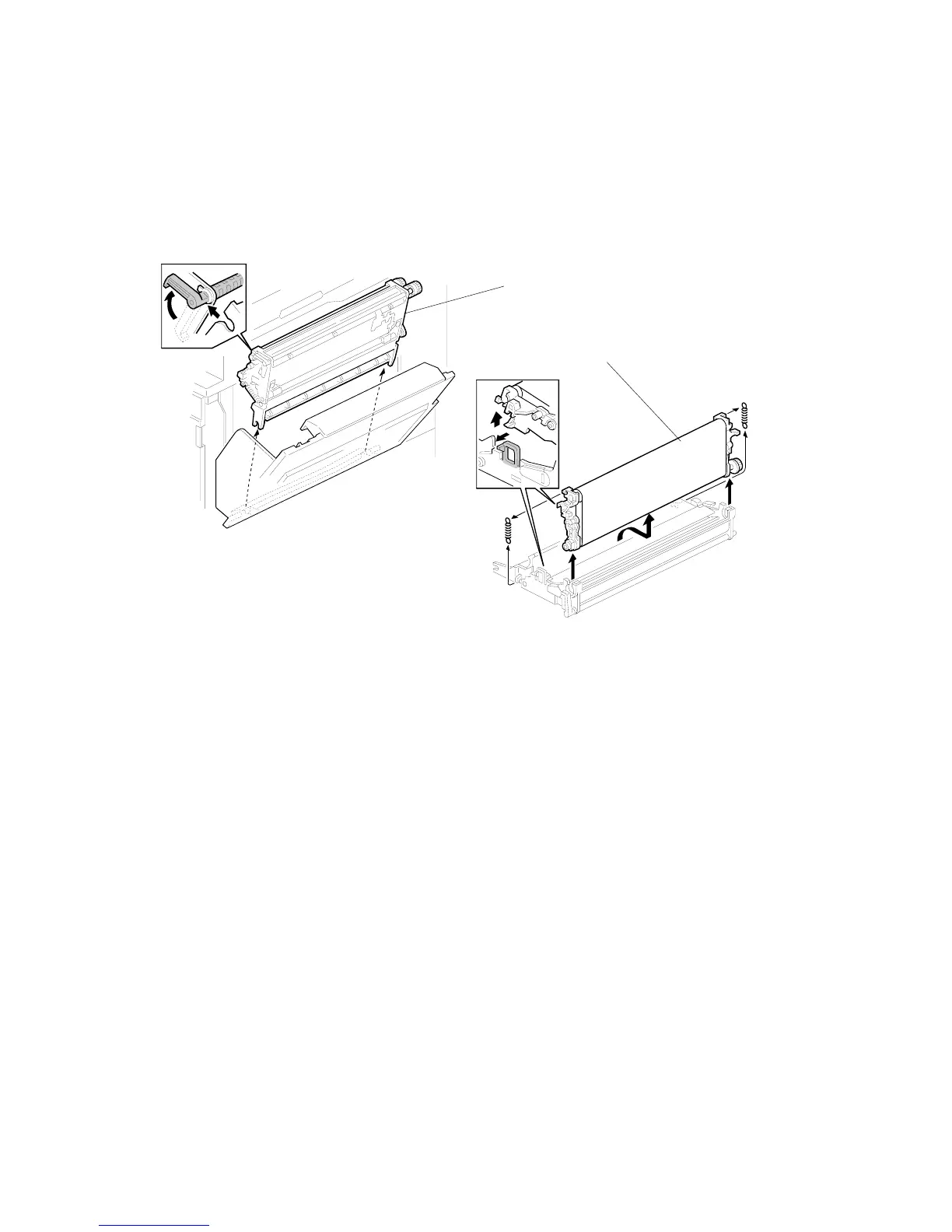

1. Lower the by-pass tray, open the duplex unit, and open the right cover.
2. Transfer unit [A] (Hook x1)
3. Transfer belt [B] (springs x2, Hook x1)
NOTE: Avoid touching the transfer belt surface.
B195R951.WMF
B195R952.WMF
[B]
[A]
